D-LINK DIR-816L Review

D-LINK DIR-816L is probably the cheapest Unifi capable Wireless AC router around. It may not be the cheapest Wireless AC router but it should be the cheapest Wireless AC router that support Unifi natively. The Xiaomi MiWiFi Mini is cheaper but it do not support Unifi out of the box. It is a cheap and great replacement of the router offered by TM.

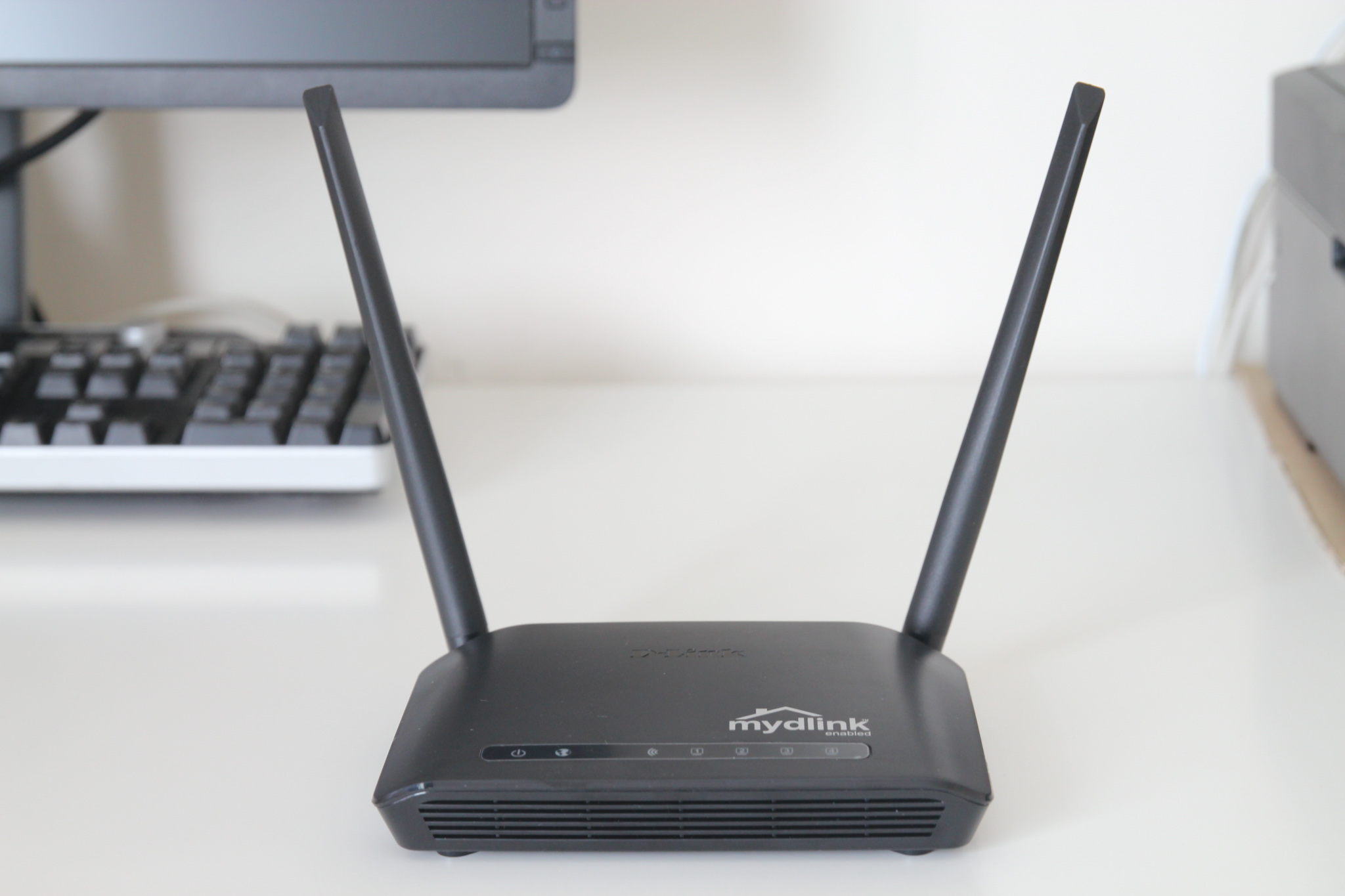

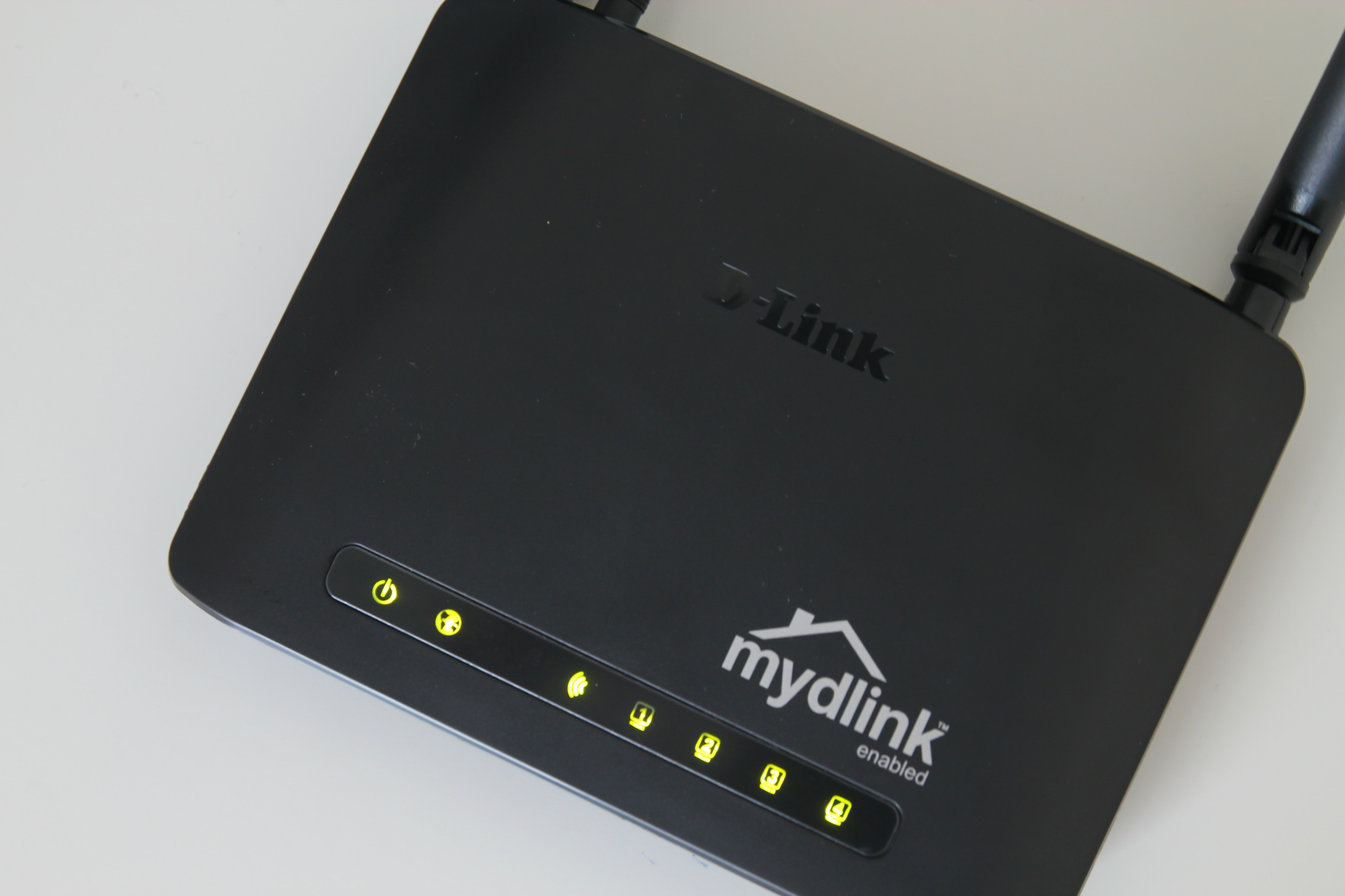

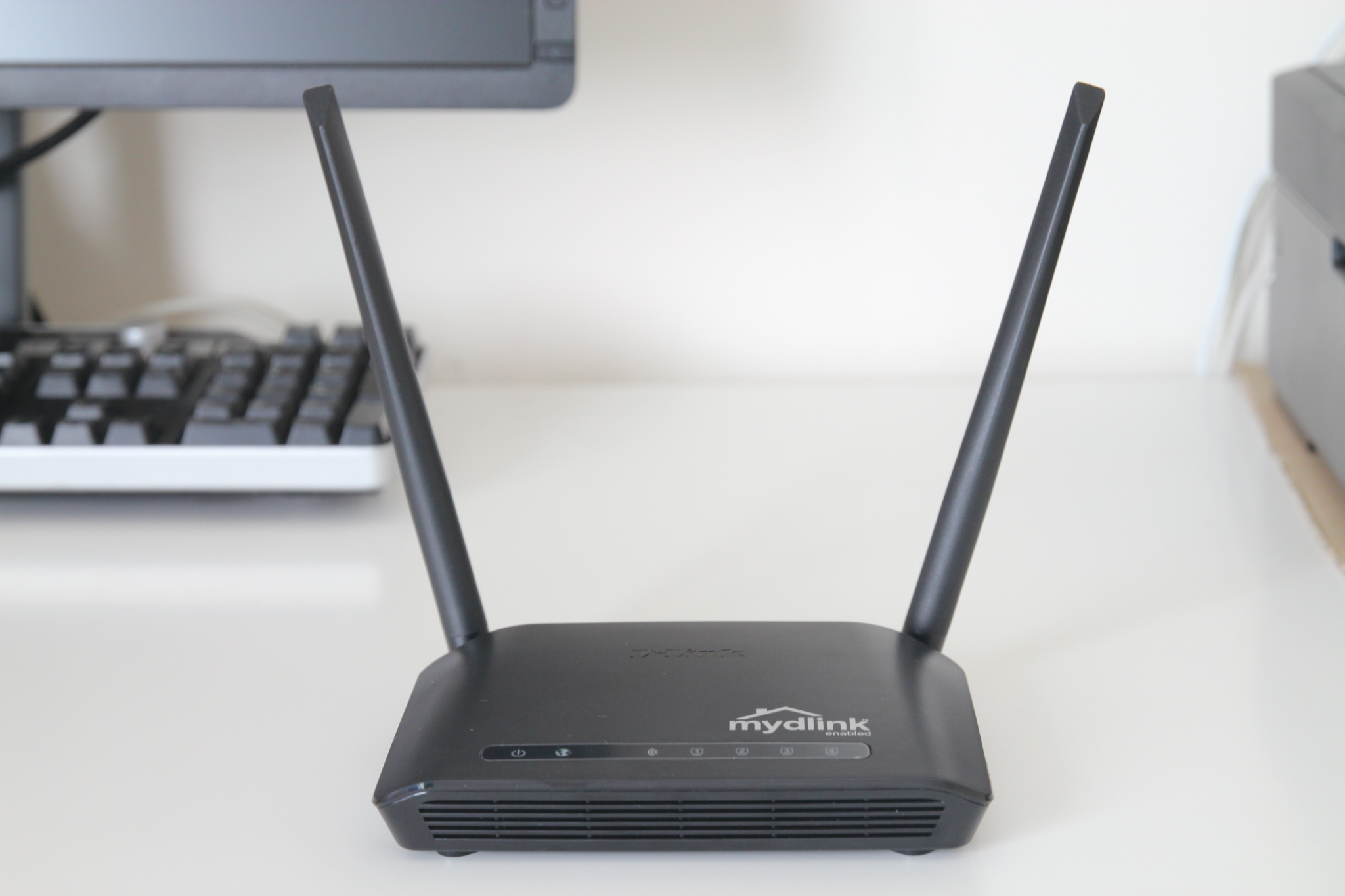

The router is quite small and the antennas are unfortunately not detachable. The design is very basic, matte black with a big “mydlink” sign on top.

Quick Specifications:

Wireless Performance

D-LINK DIR-816L Antenna

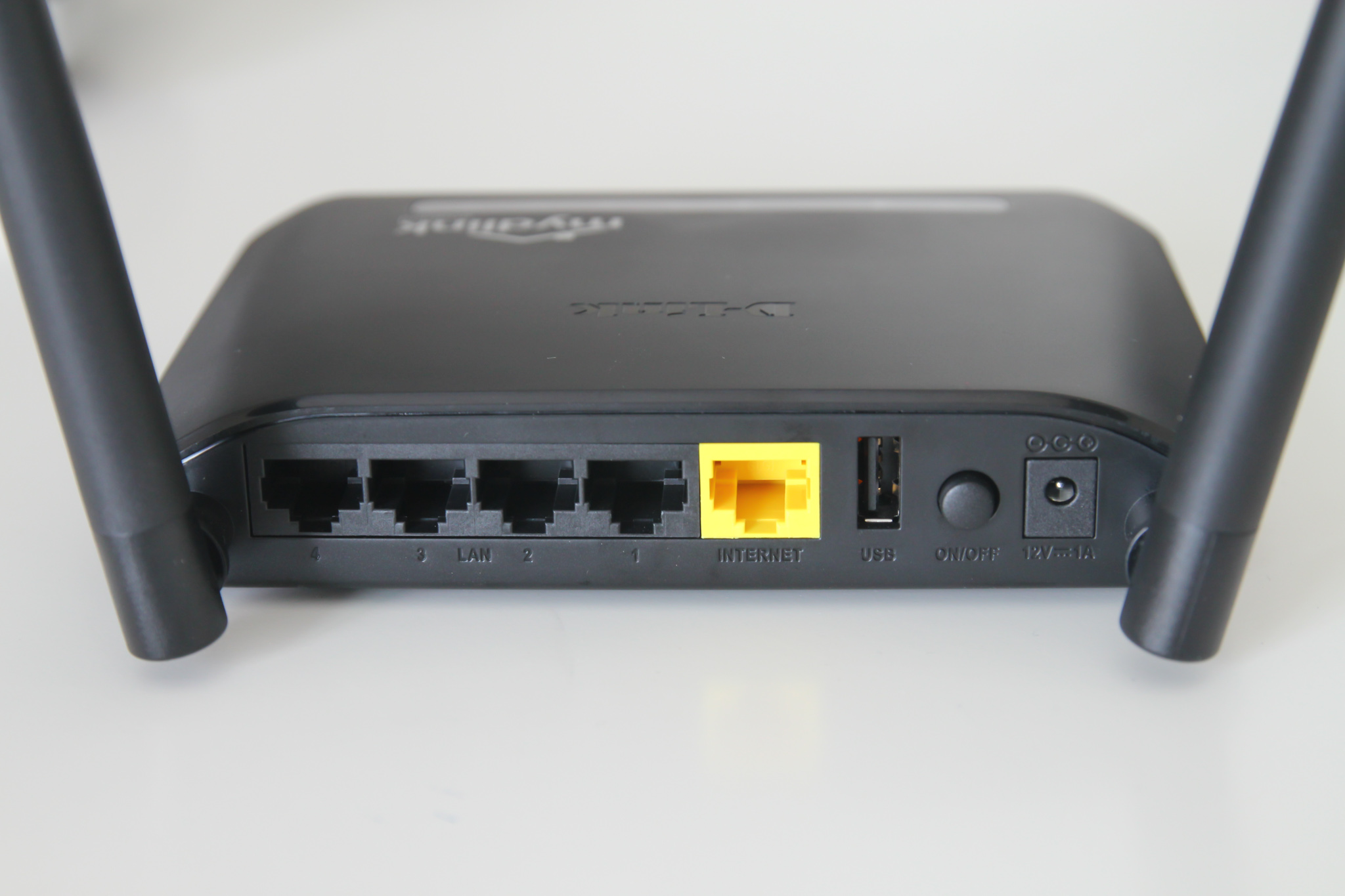

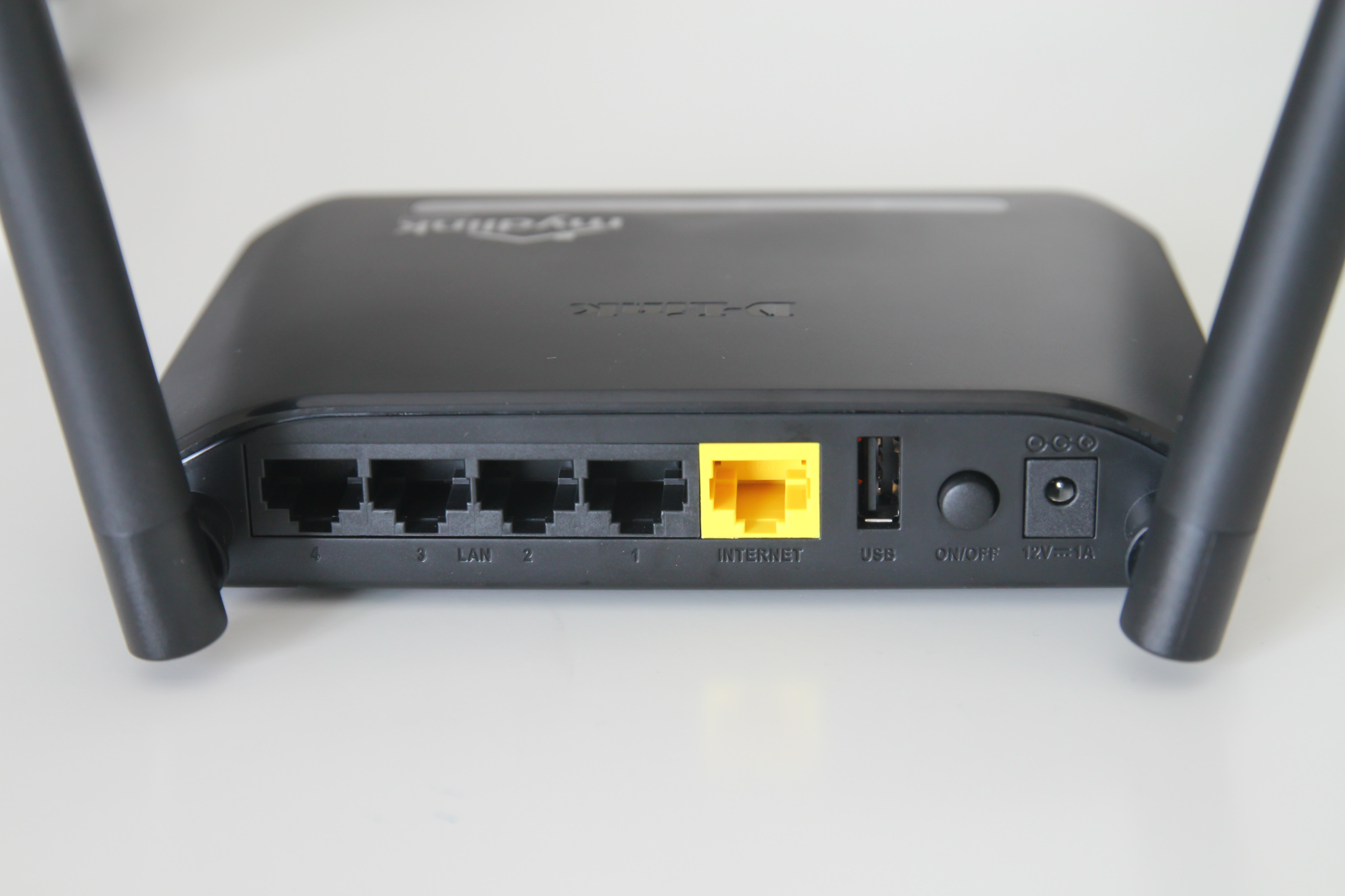

Although D-LINK DIR-816L comes with support fast Wireless AC and therefore dual band ability. Unfortunately, it does not come with a Gigabit Ethernet port. Thus, I cannot test the performance of this router properly. It is still a great device as a secondary AP for your main router to extend the signal due to the cheap price. Dual band is very useful at places with congested 2.4Ghz.

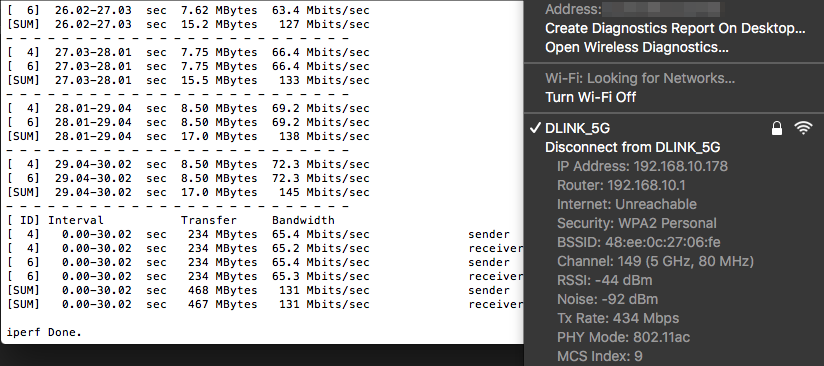

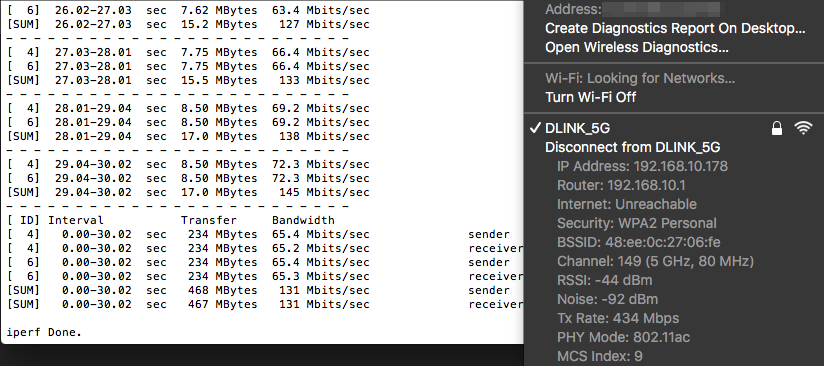

D-LINK DIR-816L Wireless Benchmark

The wireless performance is quite decent for it’s price. It is not blazing fast as it is never designed to do that. I am able to achieve 131Mbit/s on an iPerf3 test with another wireless device acting as a server. Do note that this is a simple test not a best case test.

Unifi Compatibility

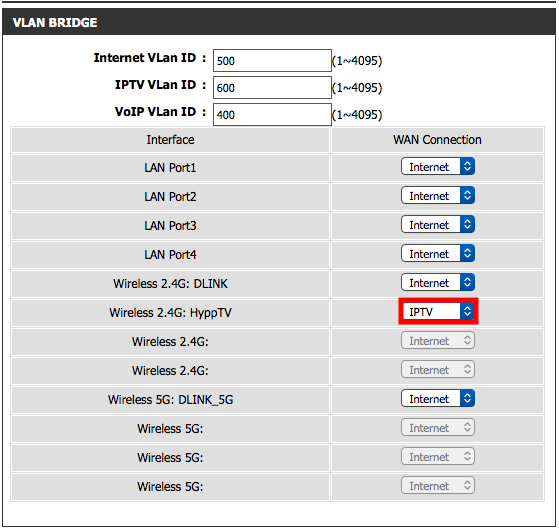

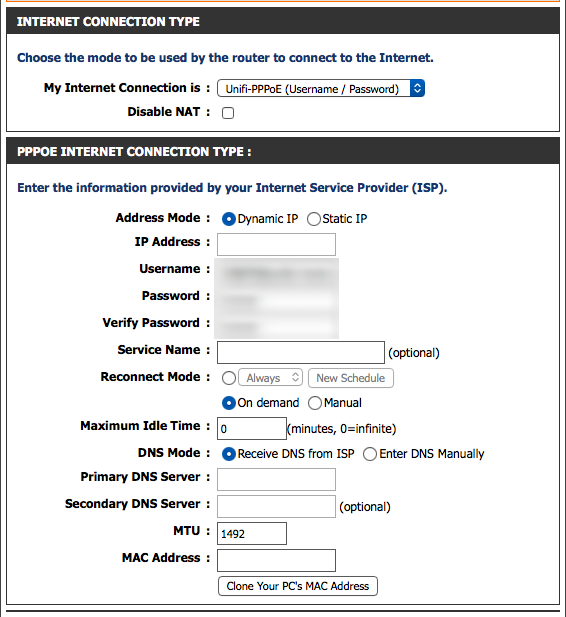

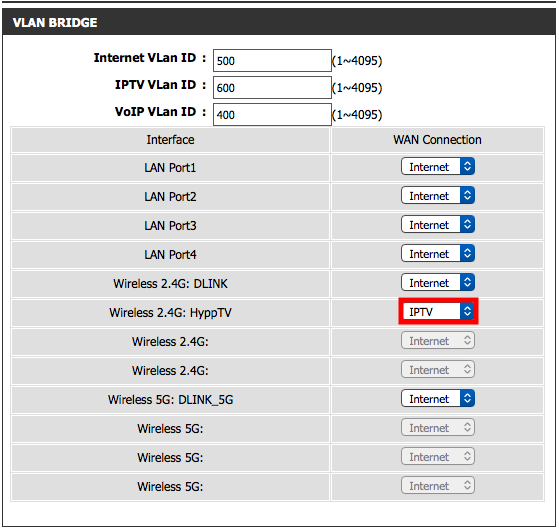

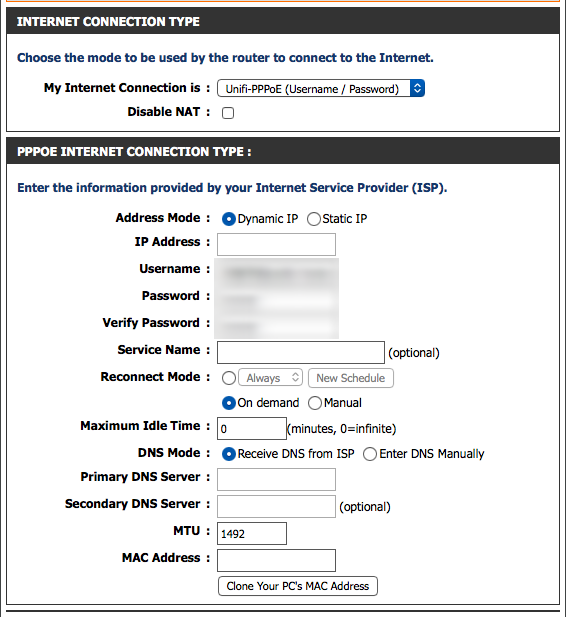

The DIR-816L is fully compatible with Unifi. It even comes with Unifi Wireless HyppTV support but I can’t verify is it working or not as my HyppTV is the old one without wireless. Maxis Fibre support is there but you just need to key in the VLAN IDs manually. As one of the previous equipment supplier for TM, I am glad that D-LINK still provide great Unifi support in their firmware.

User Interface and Features

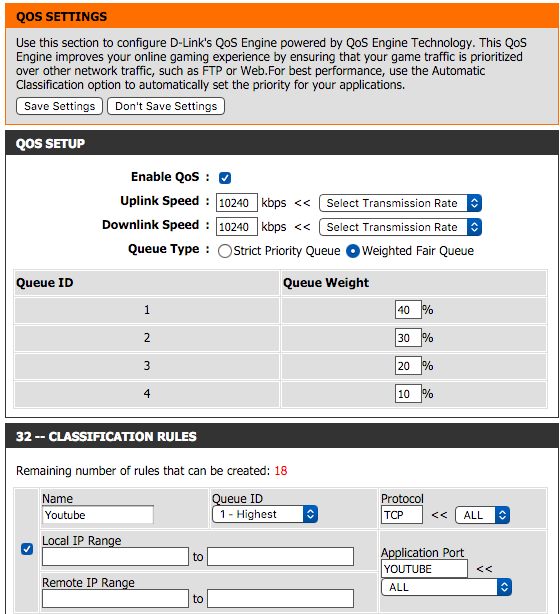

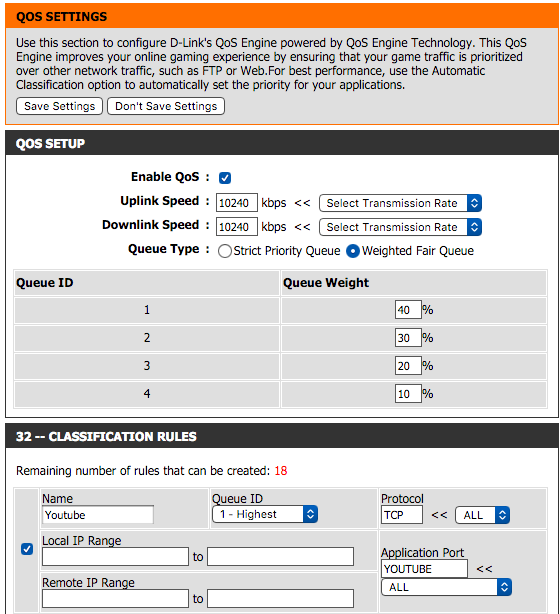

D-LINK DIR-816L QoS

DIR-816L comes with a lot of features but a long feature list is a double edged sword. D-LINK features are closer to the technical side rather than user side. The advanced features are extensive but you will not use most of them. You can even see what individual clients is browsing with this router. The DIR-816L support QoS, I recommend just stick with the pre-configured rules as it may be very confusing to configure.

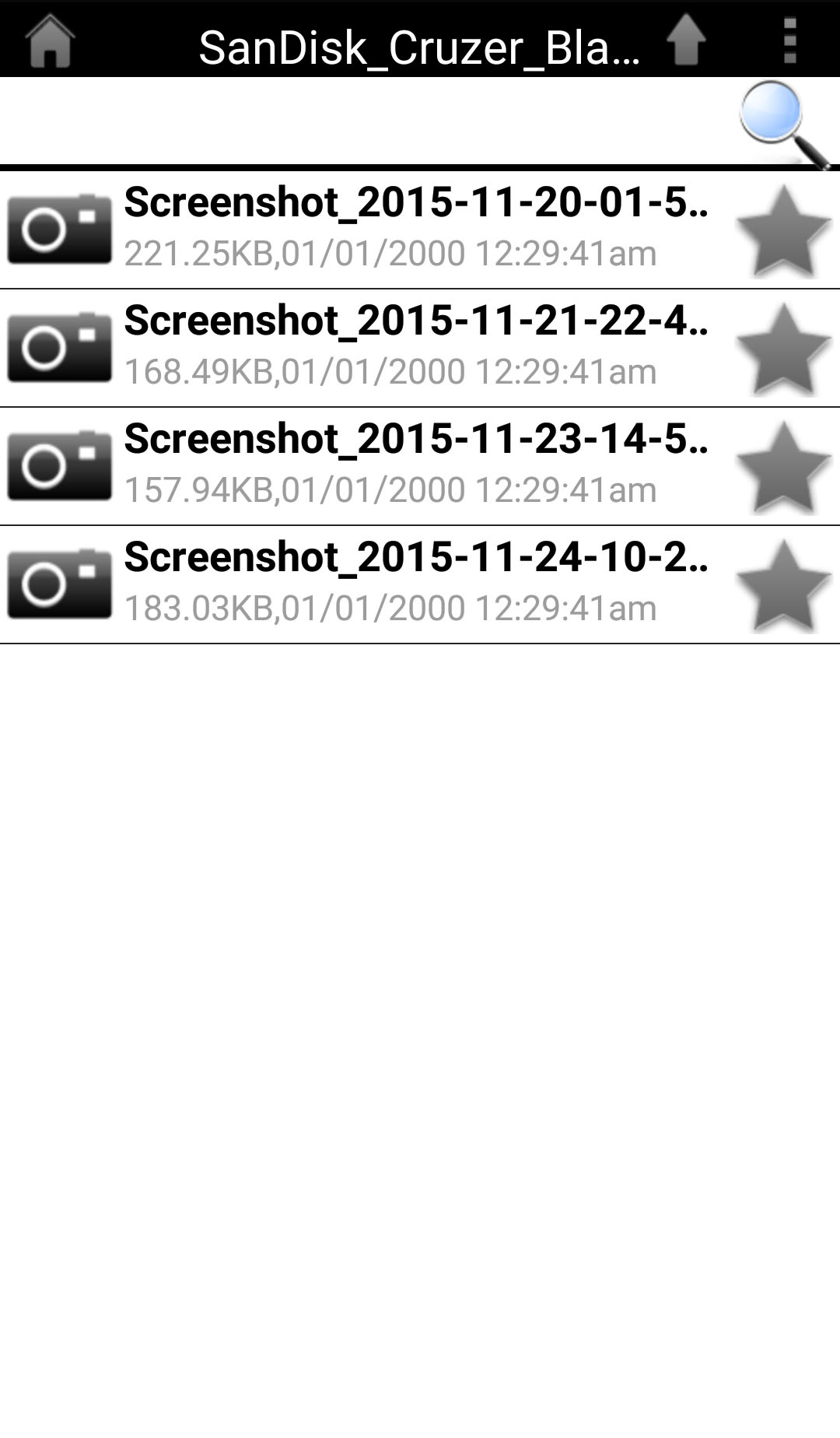

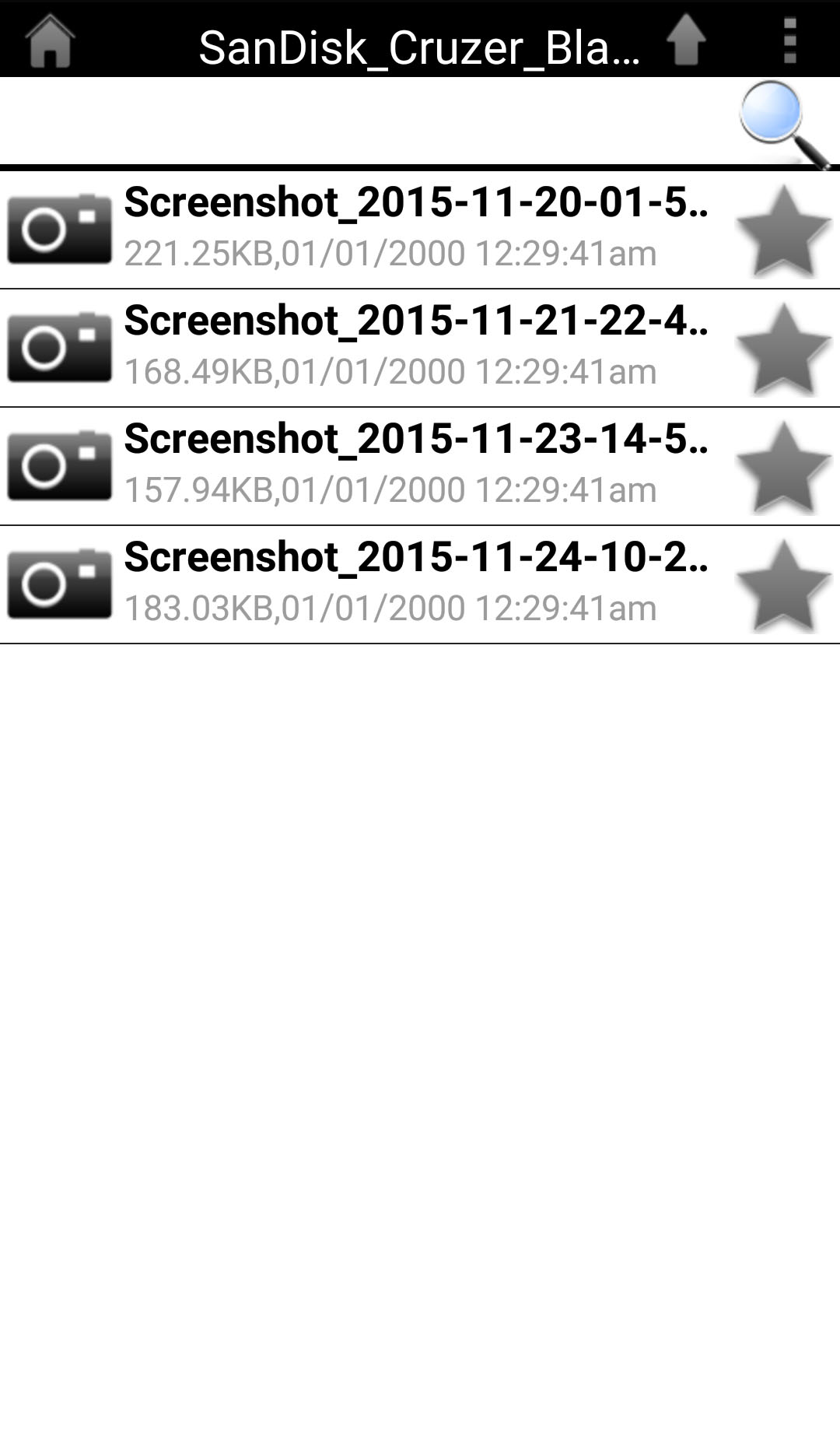

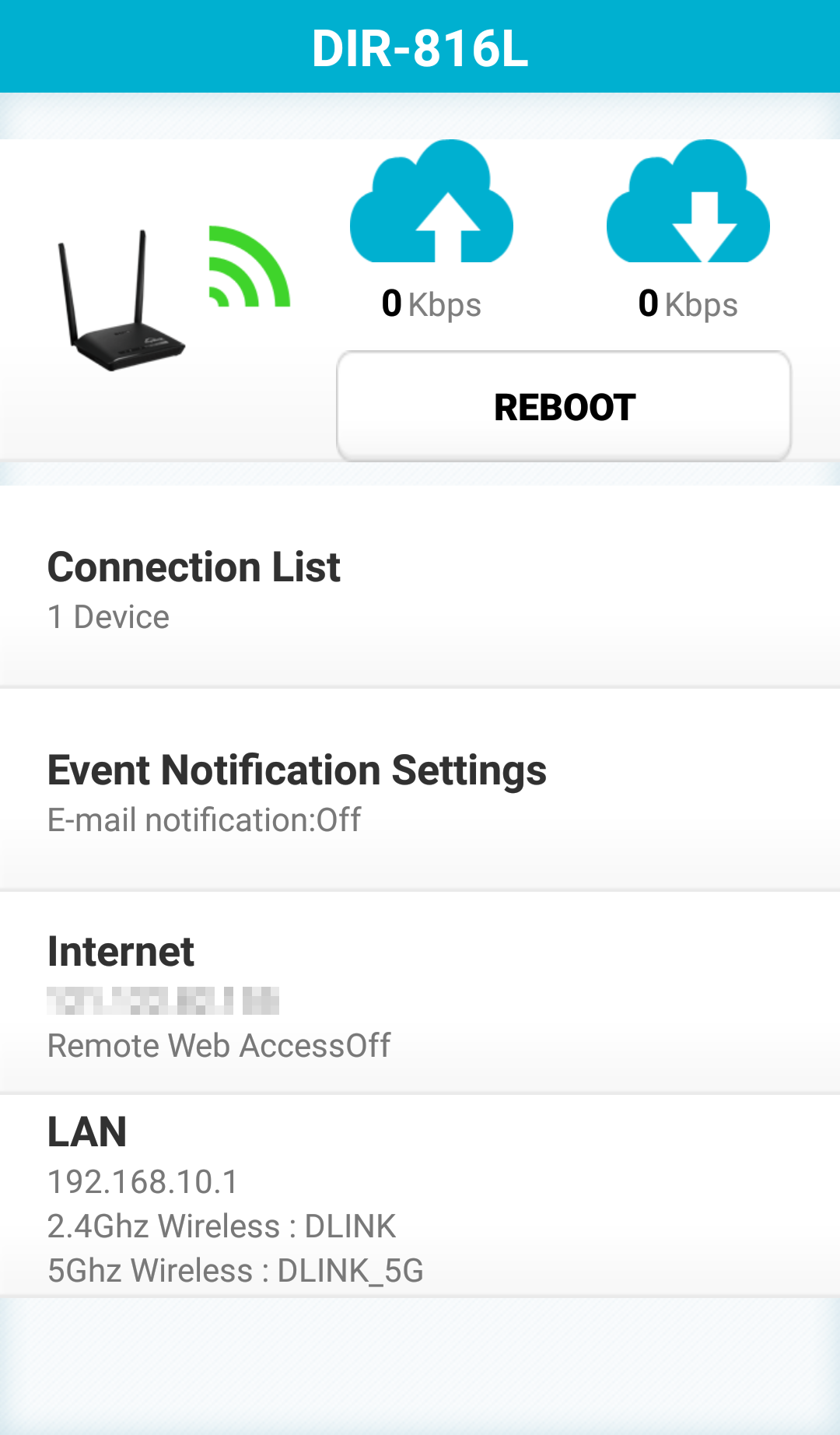

DIR-816L comes with some basic cloud feature as well. There is D-LINK Shareport feature which allow you to turn this router into a file storage server. Nothing much to say here, the performance is just usual for the file sharing. Expect just around 10MB/s read and write. I am surprised what a cheap entry level router can offer. In addition, mydlink allow you to check the status of your router with an app. The cloud features are not powerful but it is there.

The Verdict

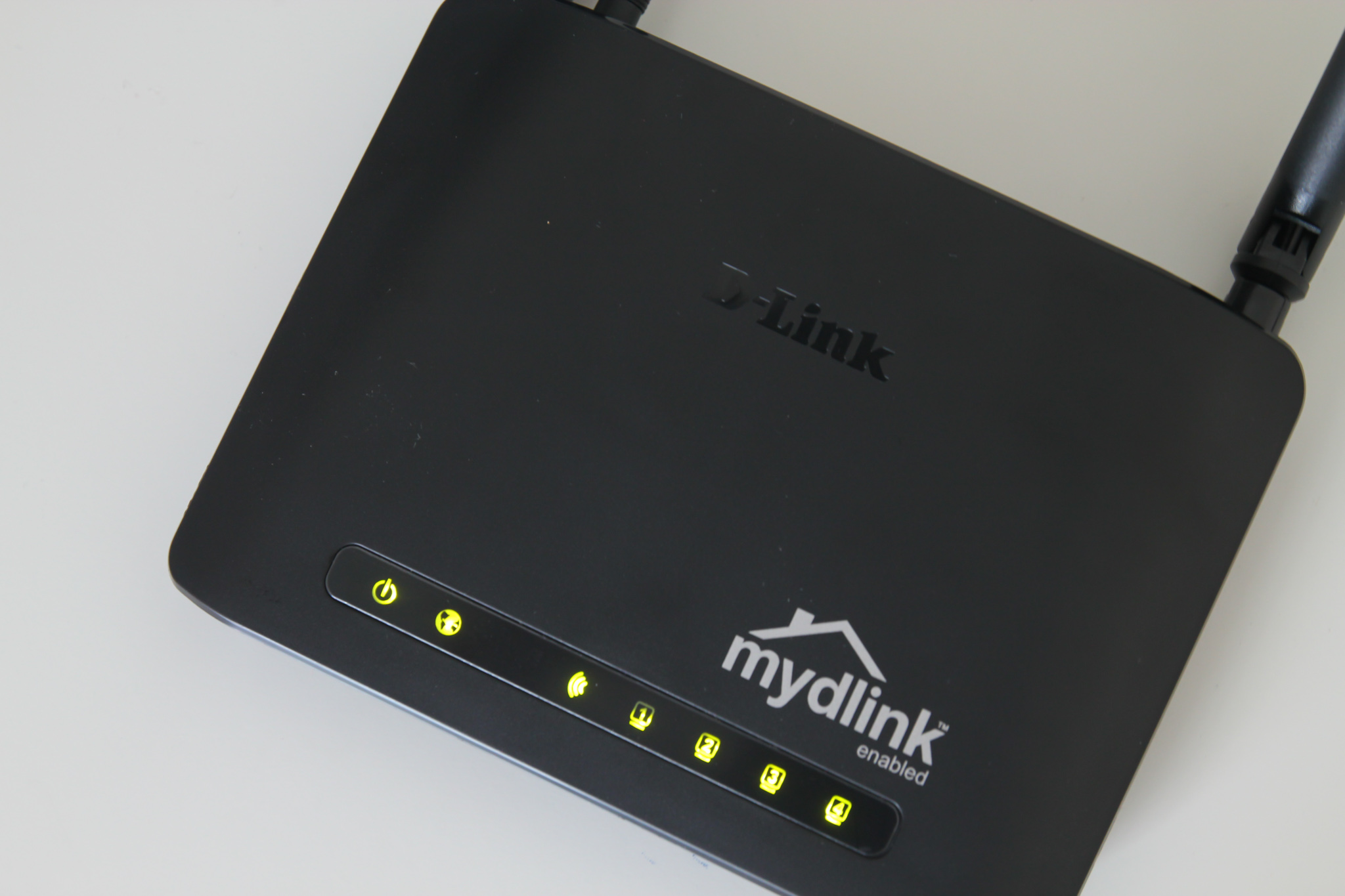

D-LINK DIR-816L color

D-LINK DIR-816L is the entry level Wireless AC router. Everything is basic as expected. 5Ghz signal isn’t that strong. 2.4Ghz is fine though. The point of this review is to showcase even at a low price, you can purchase a Wireless AC capable router which is much better than the router ISP provide. If you are looking for a new router and your budget is not high, this router is definitely worth your consideration.

The Good:

  • Cheap dual band Wireless AC router
  • Extensive amount features + cloud support
  • Great Unifi and Maxis Fibre support
  • IPV6 ready

The Downside:

  • Non detachable antenna

12 Comments

  1. MildD June 22, 2017

    Hi, is it easy to configure for port forwarding as current router from unify is complicated?
    Thanks.

    • blacktubi June 29, 2017

      It is pretty easy.

  2. casadesira October 11, 2016

    Hai Blacktubi, this router support for unifi hypptv?

    • blacktubi October 12, 2016

      Yes

  3. VB July 20, 2016

    Hi, I notice you have VLAN Bridge page which i can’t find on my unit of router. Can help to advise where to find that or where to download a version of firmware support that? I can’t use it with Maxis Fibre.

    • blacktubi July 20, 2016

      What is your current firmware version?

      • VB July 21, 2016

        The hardware version is B1, Firmware version= 2.00 SG Dated Wed 10 Dec 2014. Thanks.

        • blacktubi July 23, 2016

          That firmware should support Unifi. Make sure you have your connection set on Unifi-PPPOE instead of just PPPOE. Try getting the latest firmware from here. http://www.dlink.com.sg/dir-816/

  4. angangang June 19, 2016

    Hello.The distance between my laptop and router is about 10 meter away. How the signal perform about that range?
    Thank you.

    • blacktubi June 20, 2016

      Expect good signal if there are no wall between the 10m distance .

  5. Jeff February 24, 2016

    Hi, noticed that you managed to setup your router to Unifi (obviously!). i just bought one but have problems setting the unit up as i can’t manage to connect to Unifi during setup. The firmware version in the router is SG2.0.
    Do i need to update the firmware or is there something that i did not do right as i followed the instructions and also double checked my unifi id and password.

    • blacktubi February 25, 2016

      The firmware is fine. Do you manually select Unifi-PPPOE connection mode? Make sure your connection to the TM ONU is right as well.
