Asus RT-AC5300 Review


Asus RT-AC5300

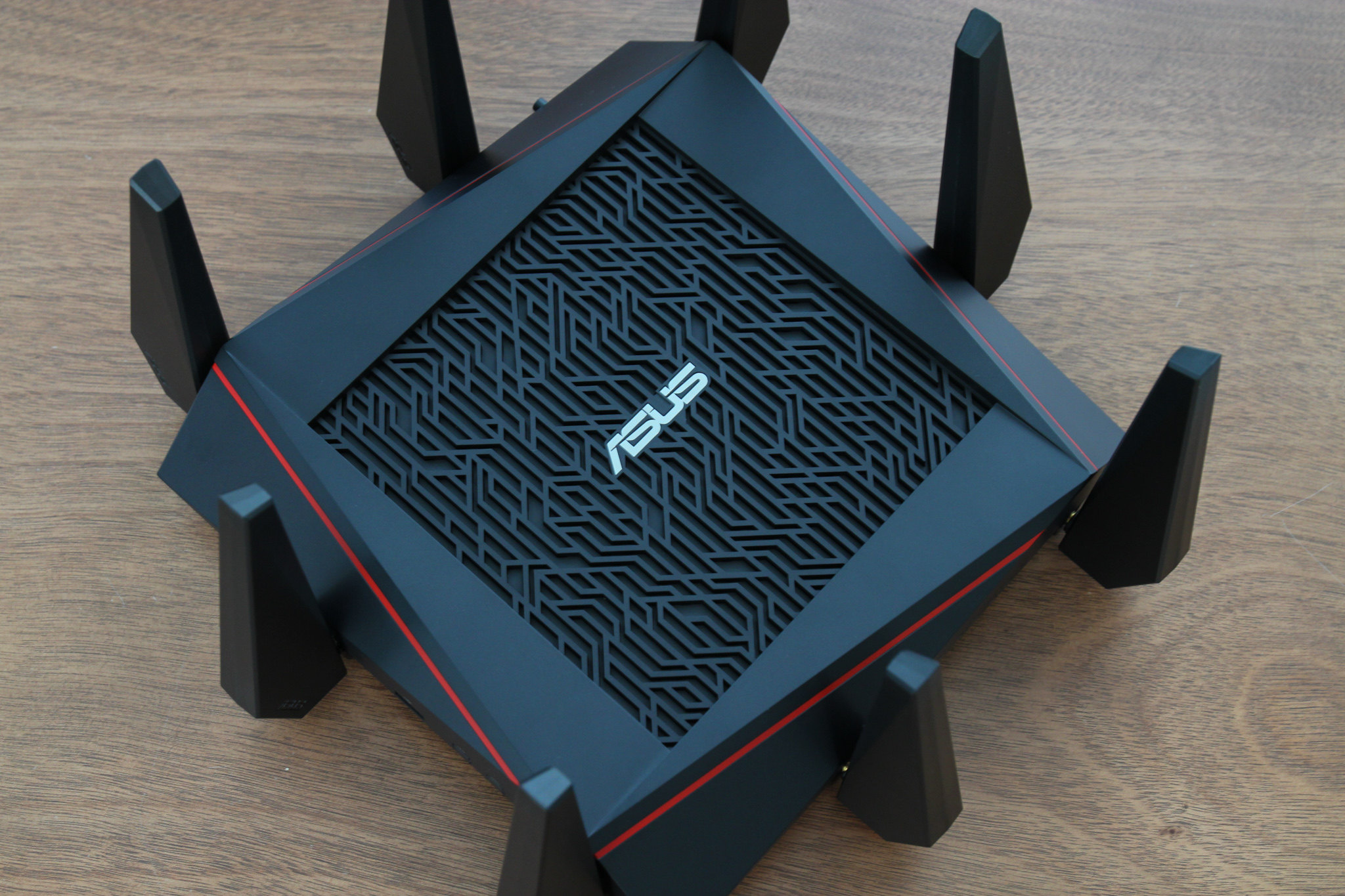

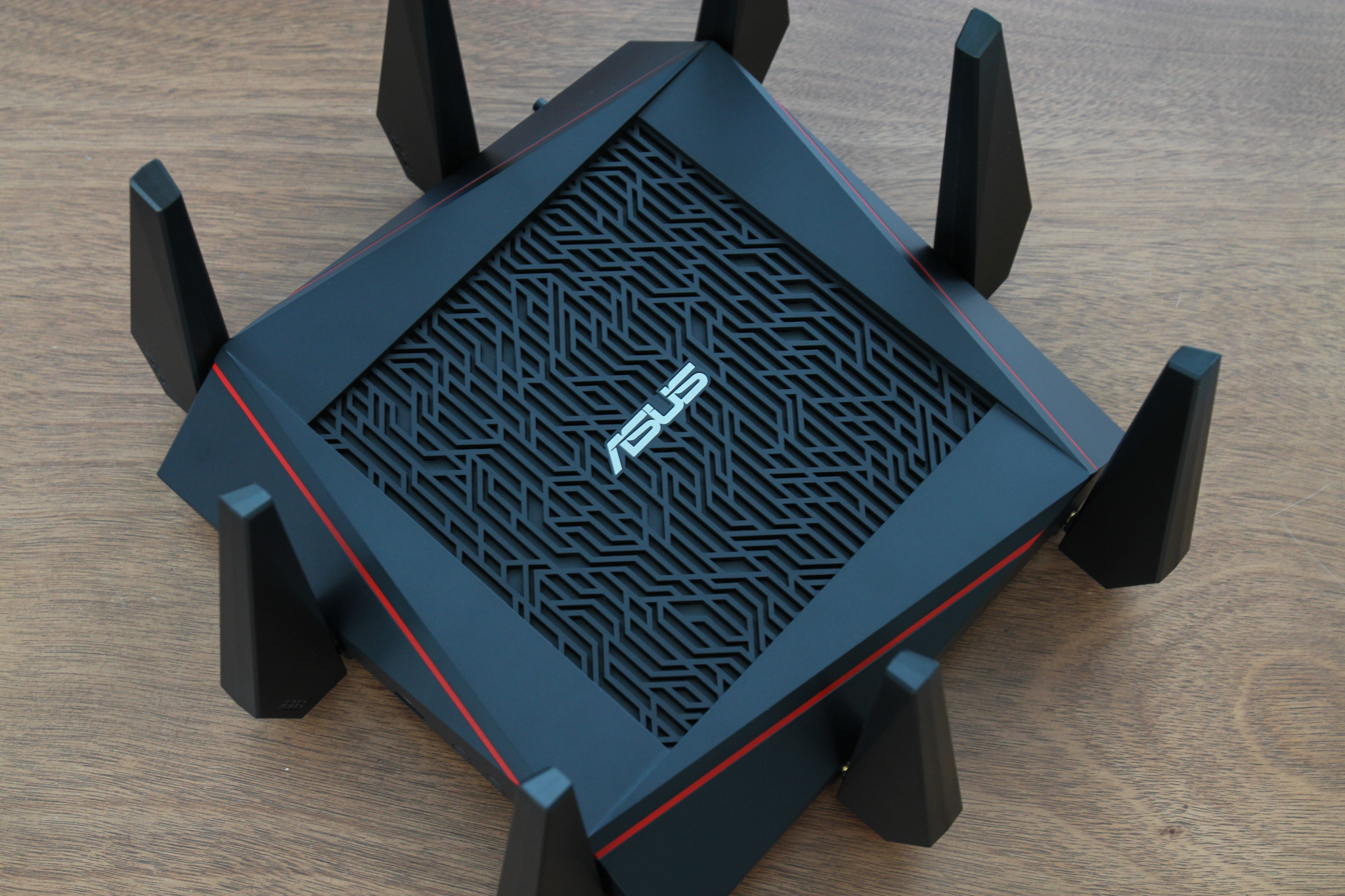

The maze pattern on Asus RT-AC5300

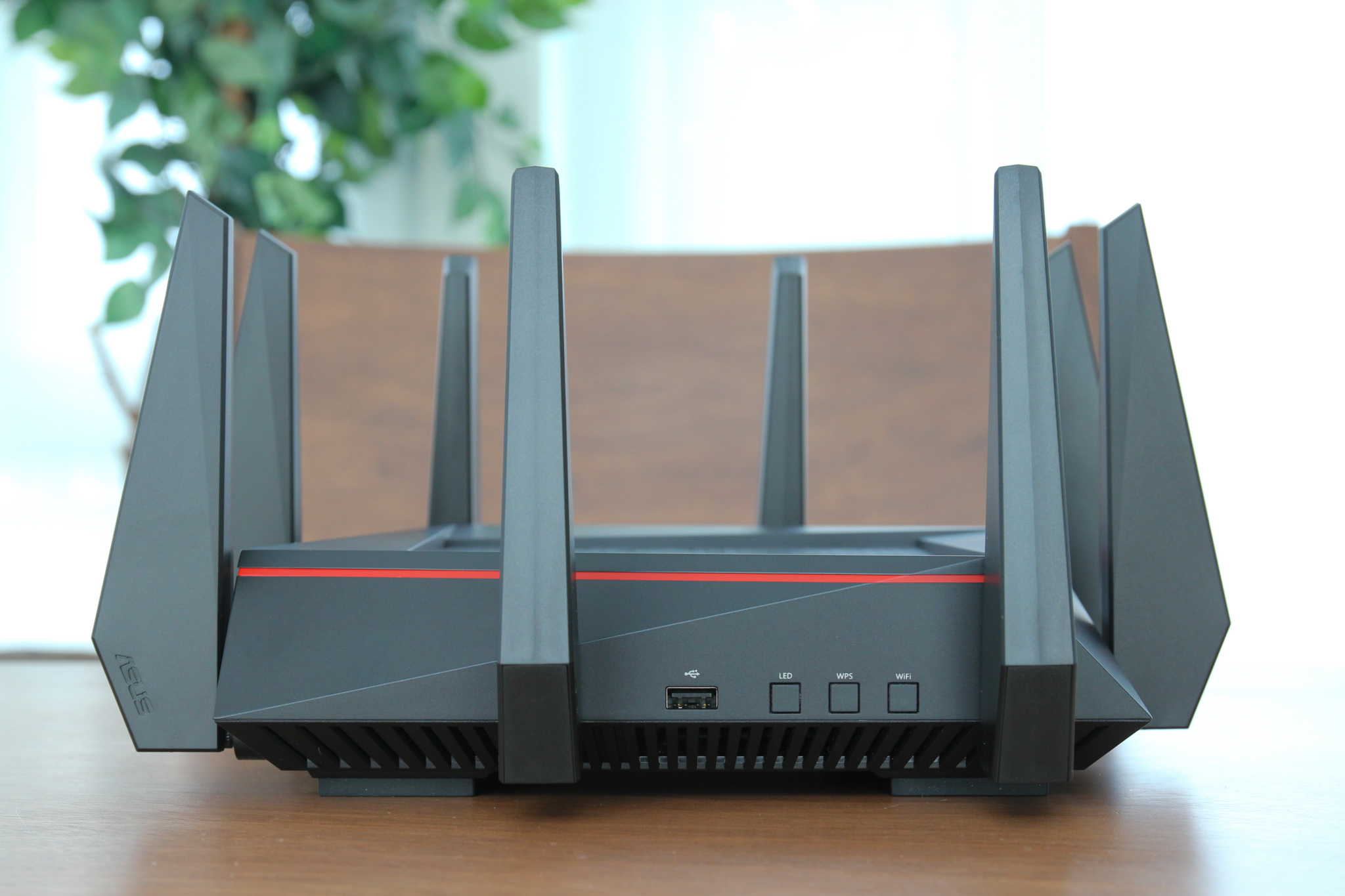

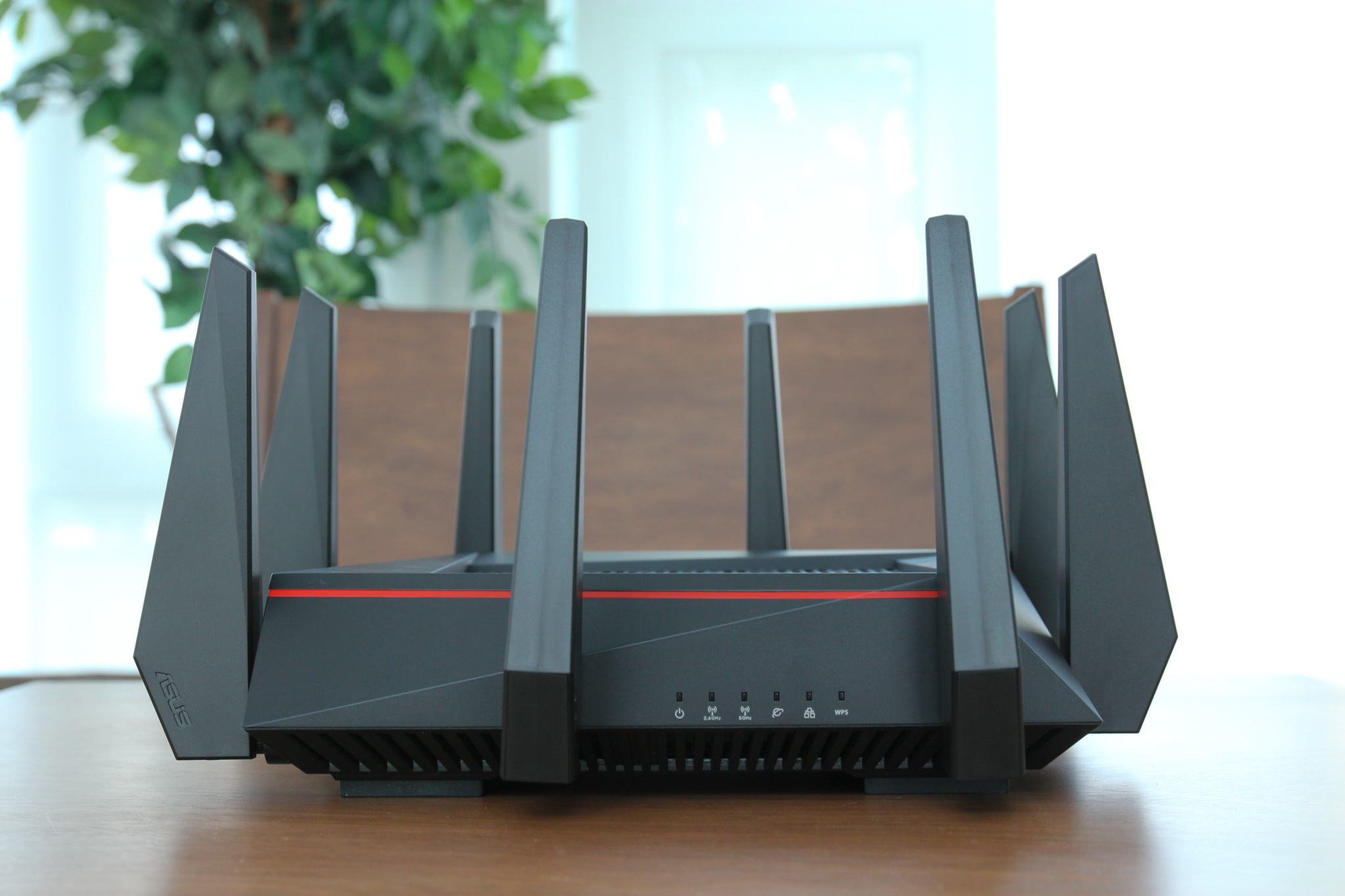

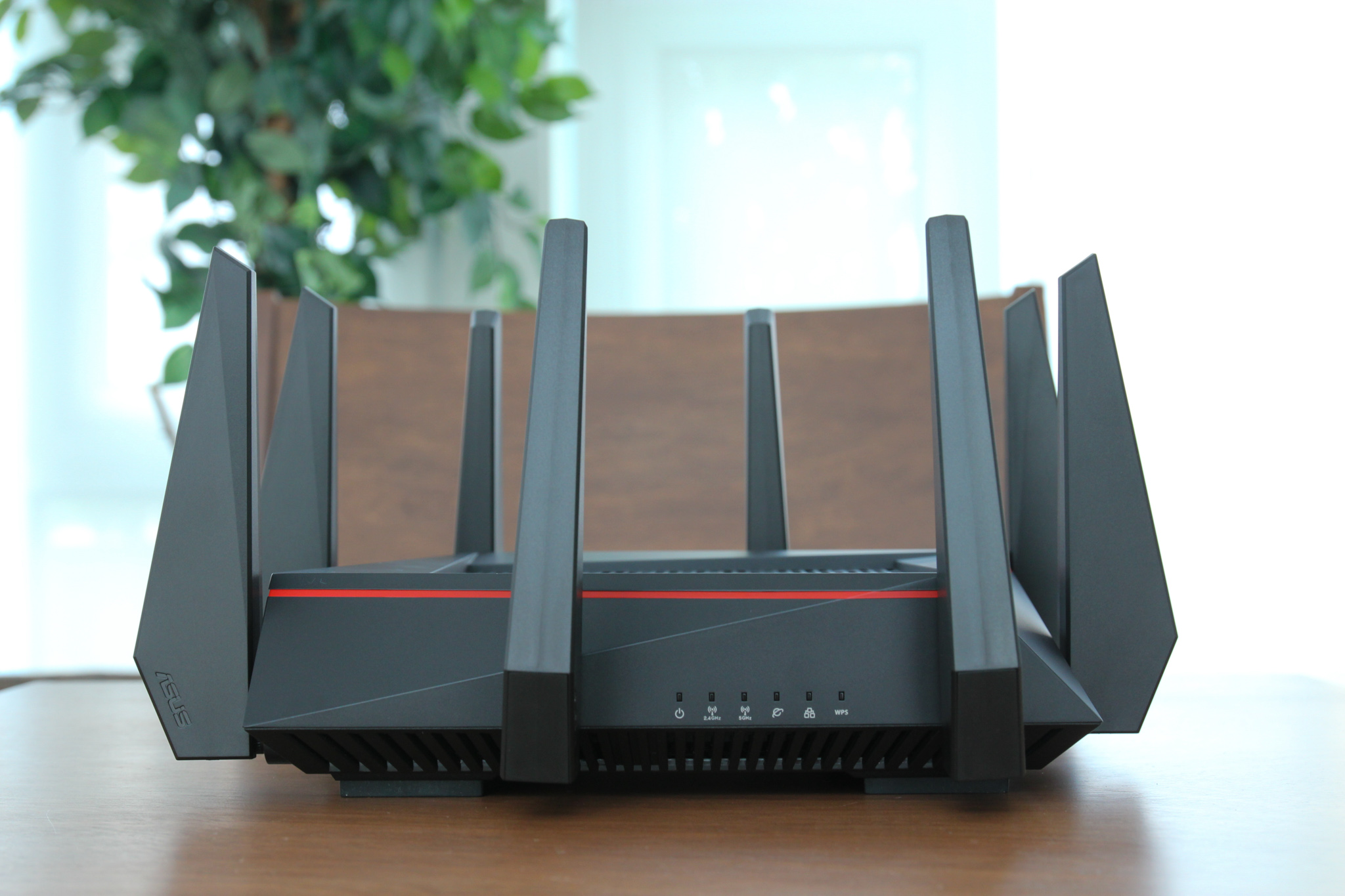

The RT-AC5300 looks absolutely ridiculous, the design is very sophisticated and pleasing. The 8 antennas are huge, unlike your usual antenna. Asus gave it some red accent to complete the “gaming” looks. The top features a maze-liked pattern with tiny ventilation hole cleverly hidden under the design. However, Asus continue their fashion of including only 1 LED activity indicator for all 4 LAN ports. I guess it is a norm for new Asus routers now. That said, the RT-AC5300 is no doubt a huge router. It is a 25cm square box and weighs around 2kg.

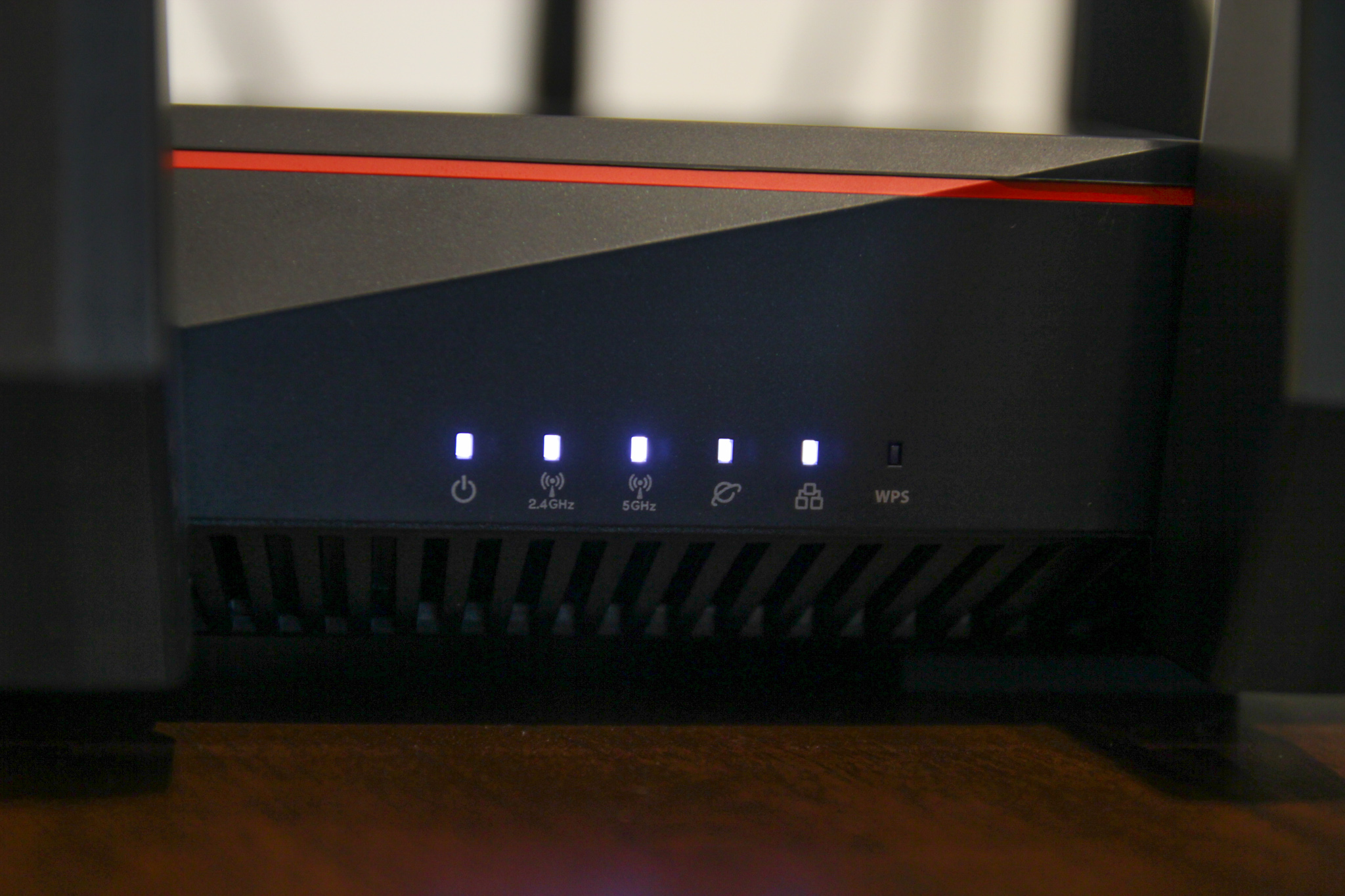

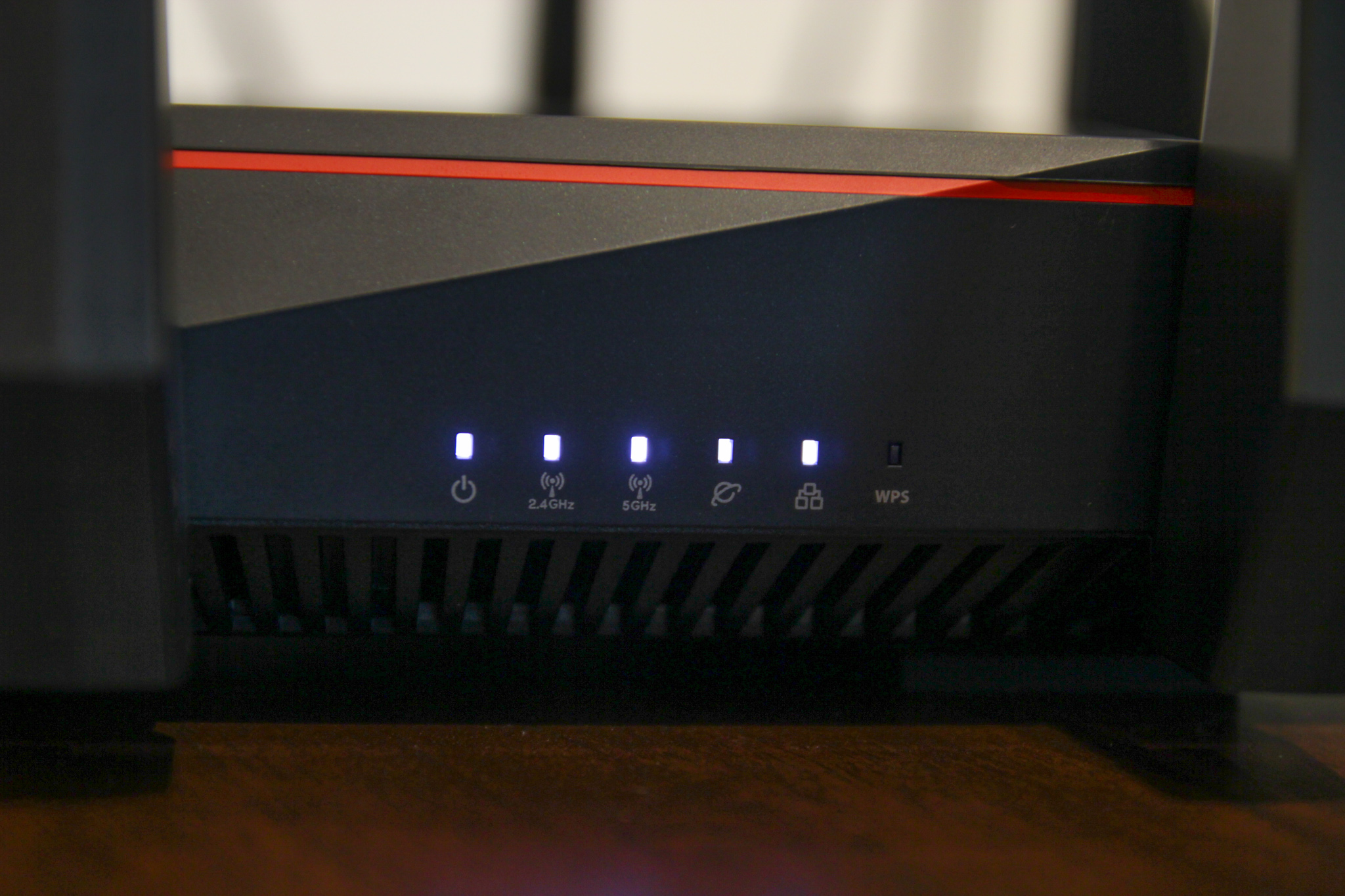

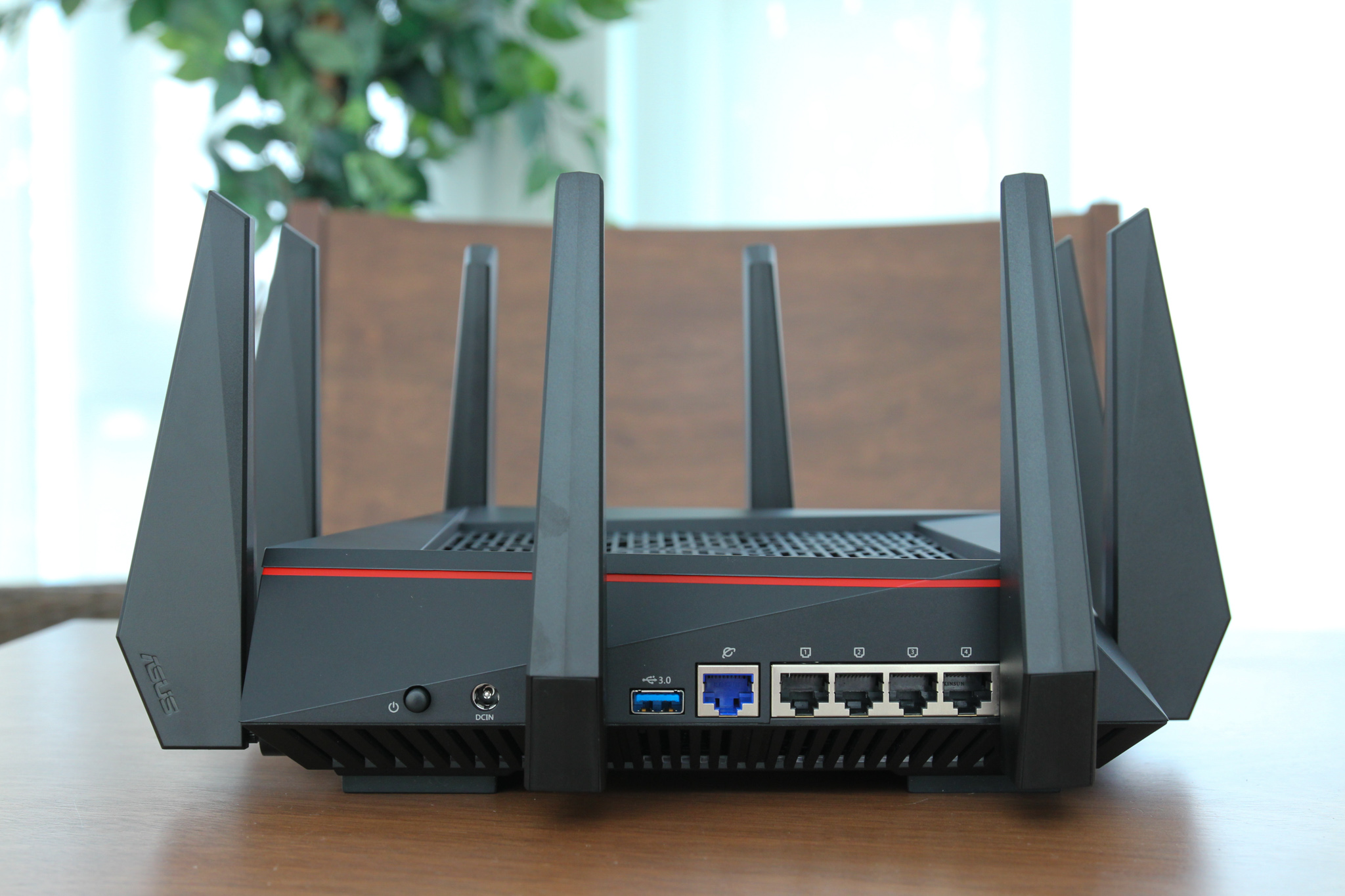

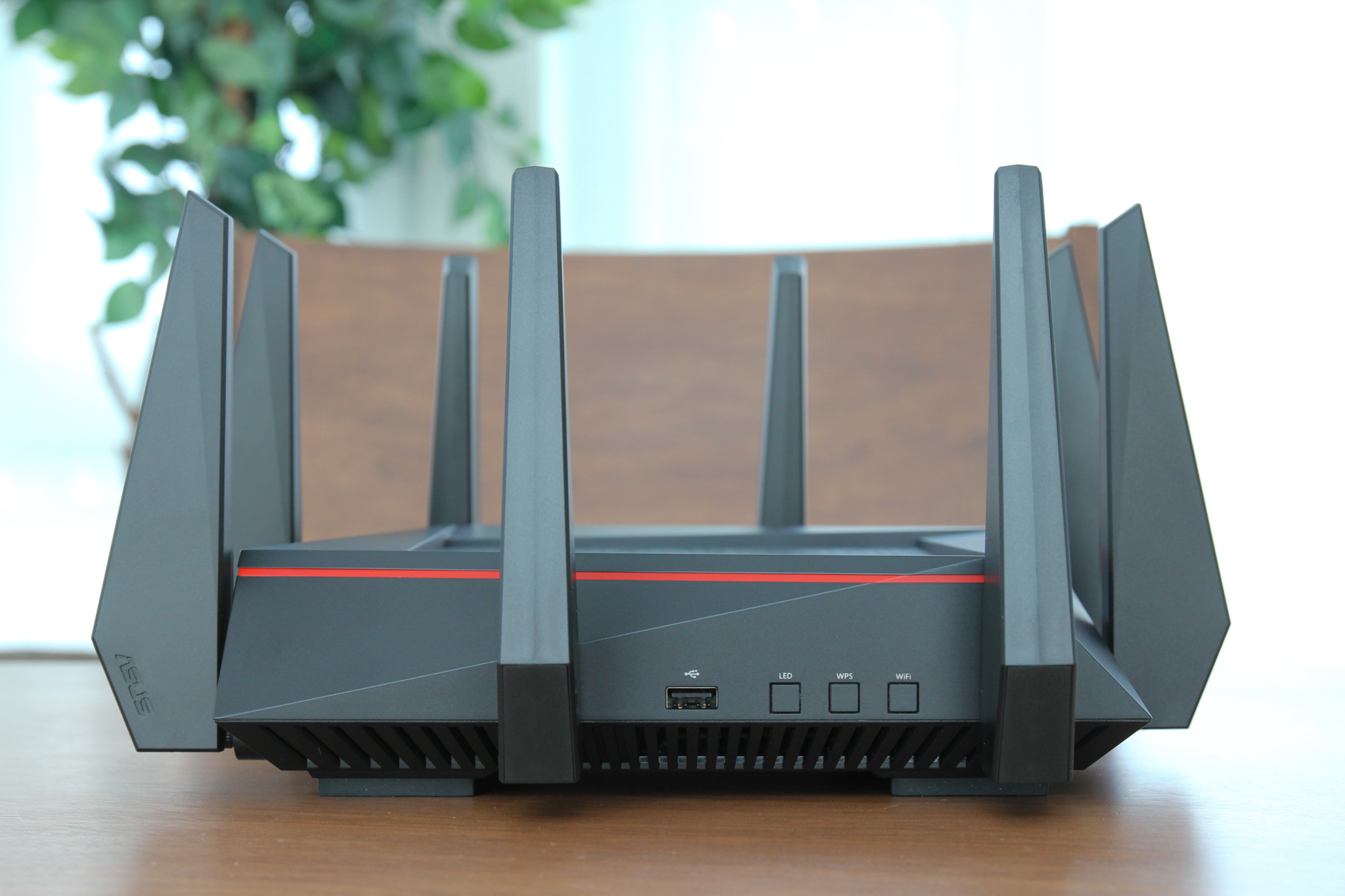

As for USB port, the RT-AC5300 come with 2 USB ports, one of them is USB3.0 capable. As usual, the white LED indicator on the RT-AC5300 can be turn off for a more discrete look. There is a wireless toggle button as well.

User Interface and Features

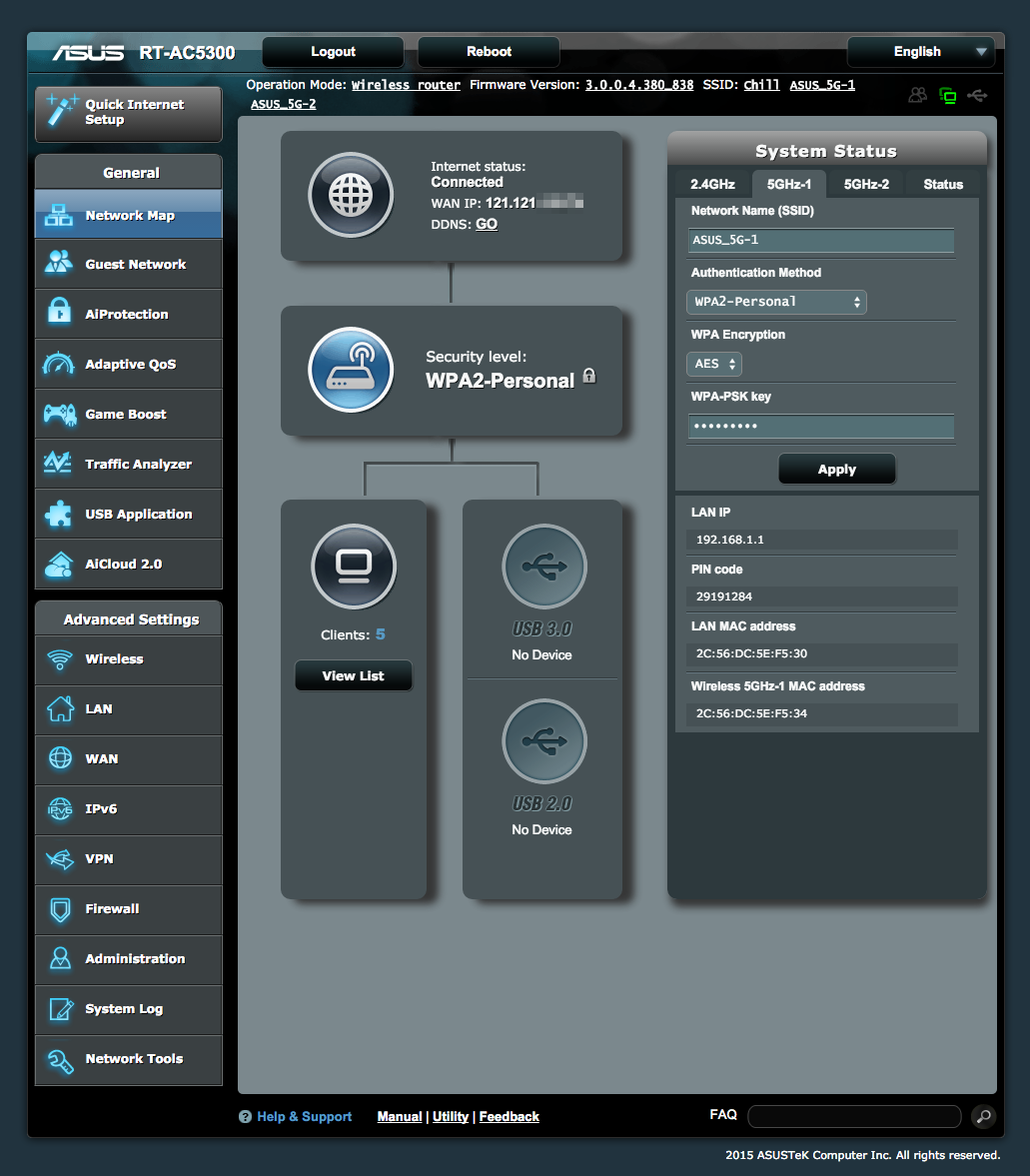

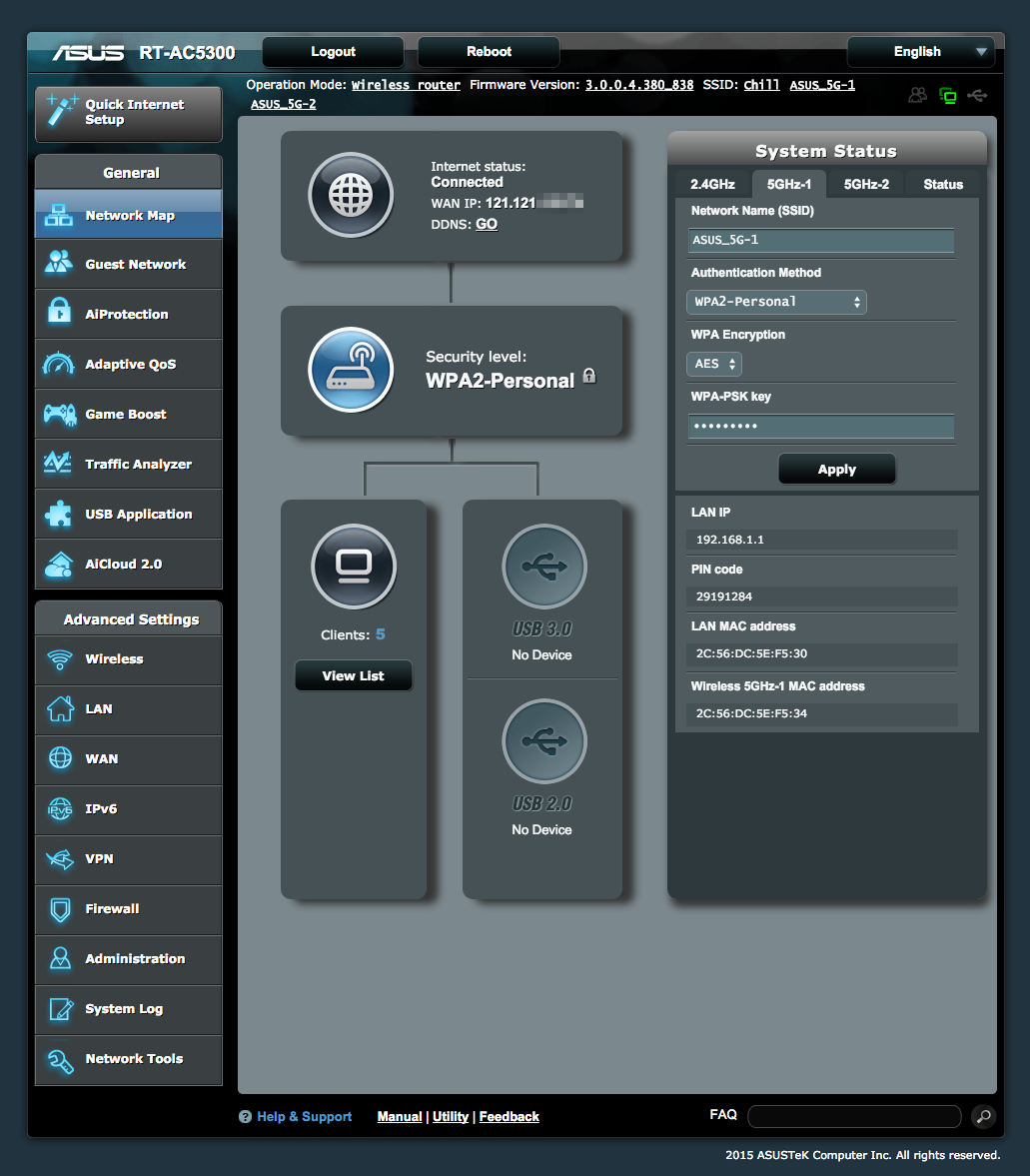

The user-friendly ASUSWRT

The RT-AC5300 comes with the familiar user-friendly ASUSWRT interface. It comes with some new features tailored for this particular router. I am a fan of ASUSWRT as it works really well with Malaysian ISP particularly Unifi. It is really stable and the included features are user-friendly. Adaptive QoS is something I use a lot. The QoS engine is able to intelligently prioritize the packet I want. It also intelligently allocates bandwidth between various clients to prevent traffic hogging.

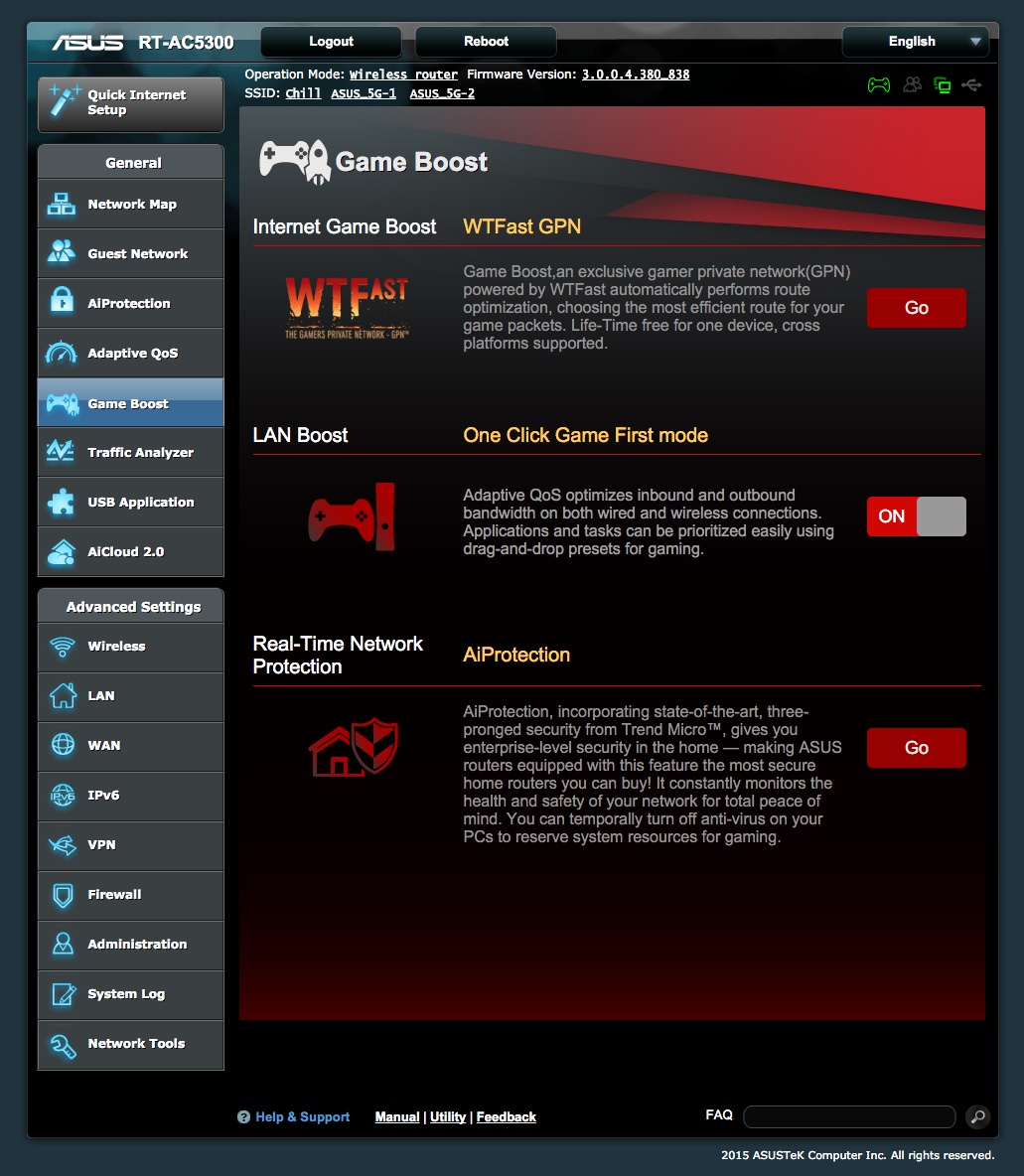

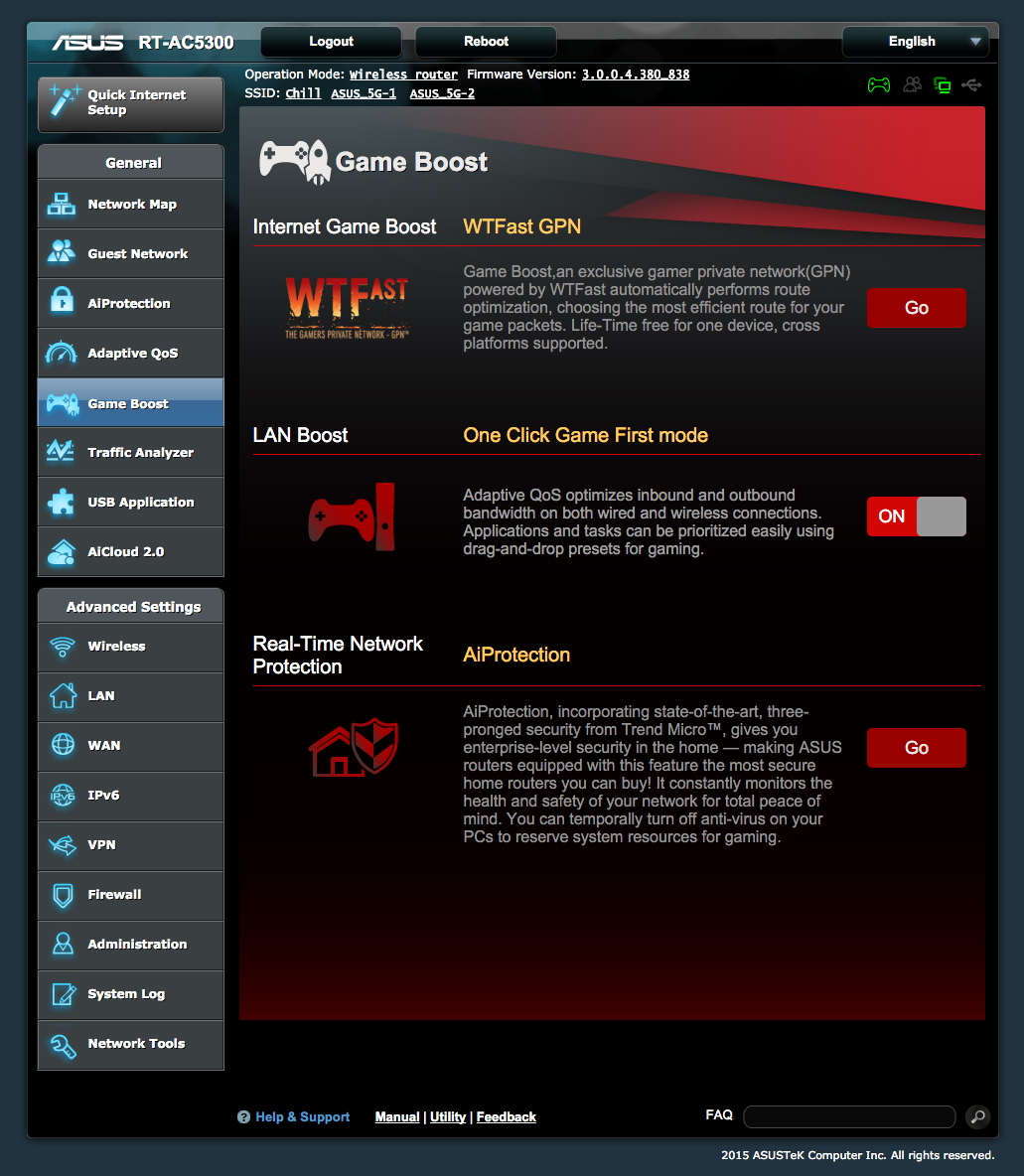

Game Boost

Asus RT-AC5300 comes with some gaming related optimizations as well. The game boost feature will activate Adaptive QoS and configure a gaming profile to prioritize gaming. The RT-AC5300 comes with a lifetime license of WTFast GPN. It is sort of a VPN to improve your gaming performance by providing a better route to the server. However, this feature is still in beta  so it may not work with certain games. I found the game boost feature to be quite effective. My gaming latency does not seem to be affected even my another computer is downloading some files.

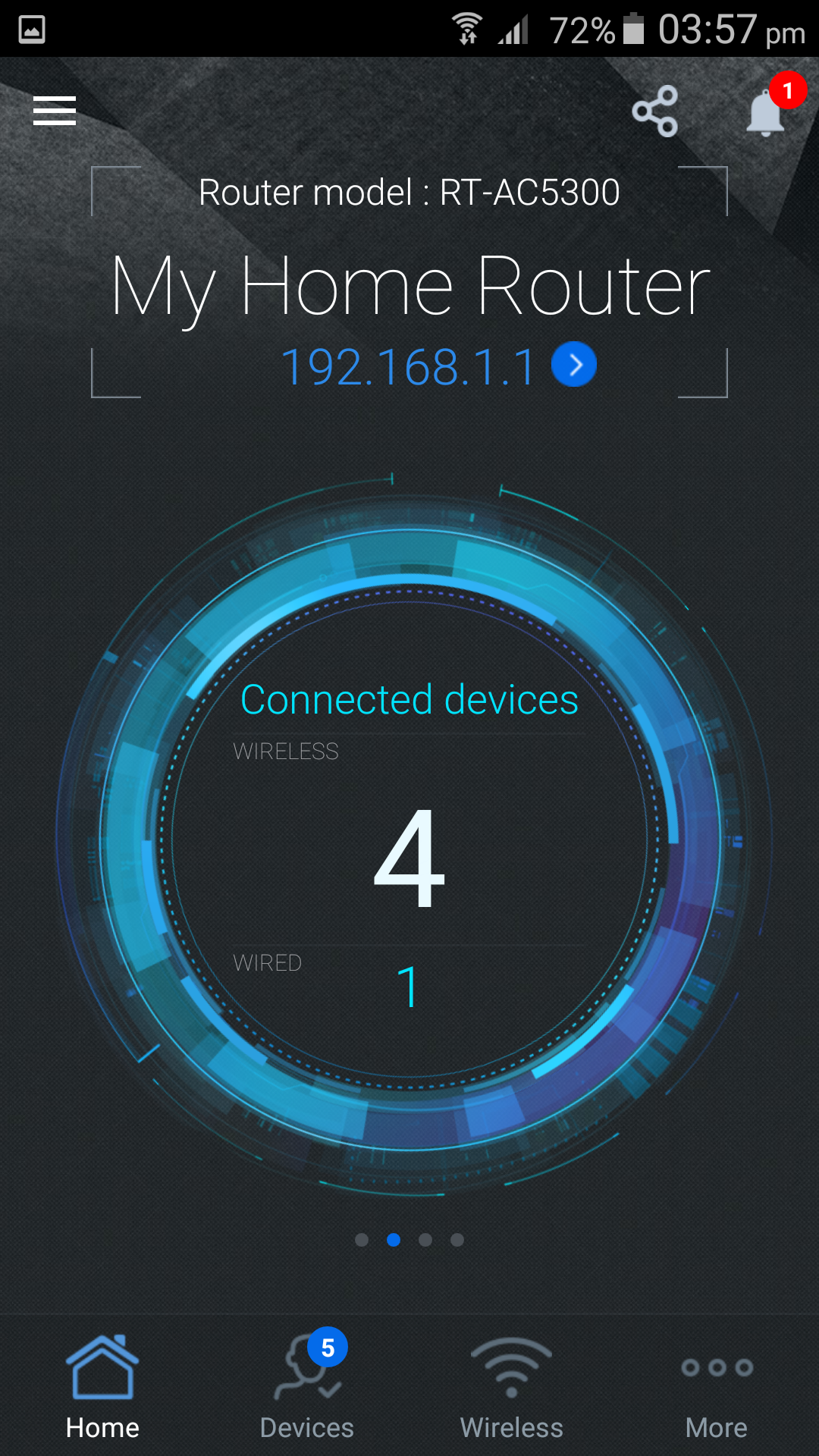

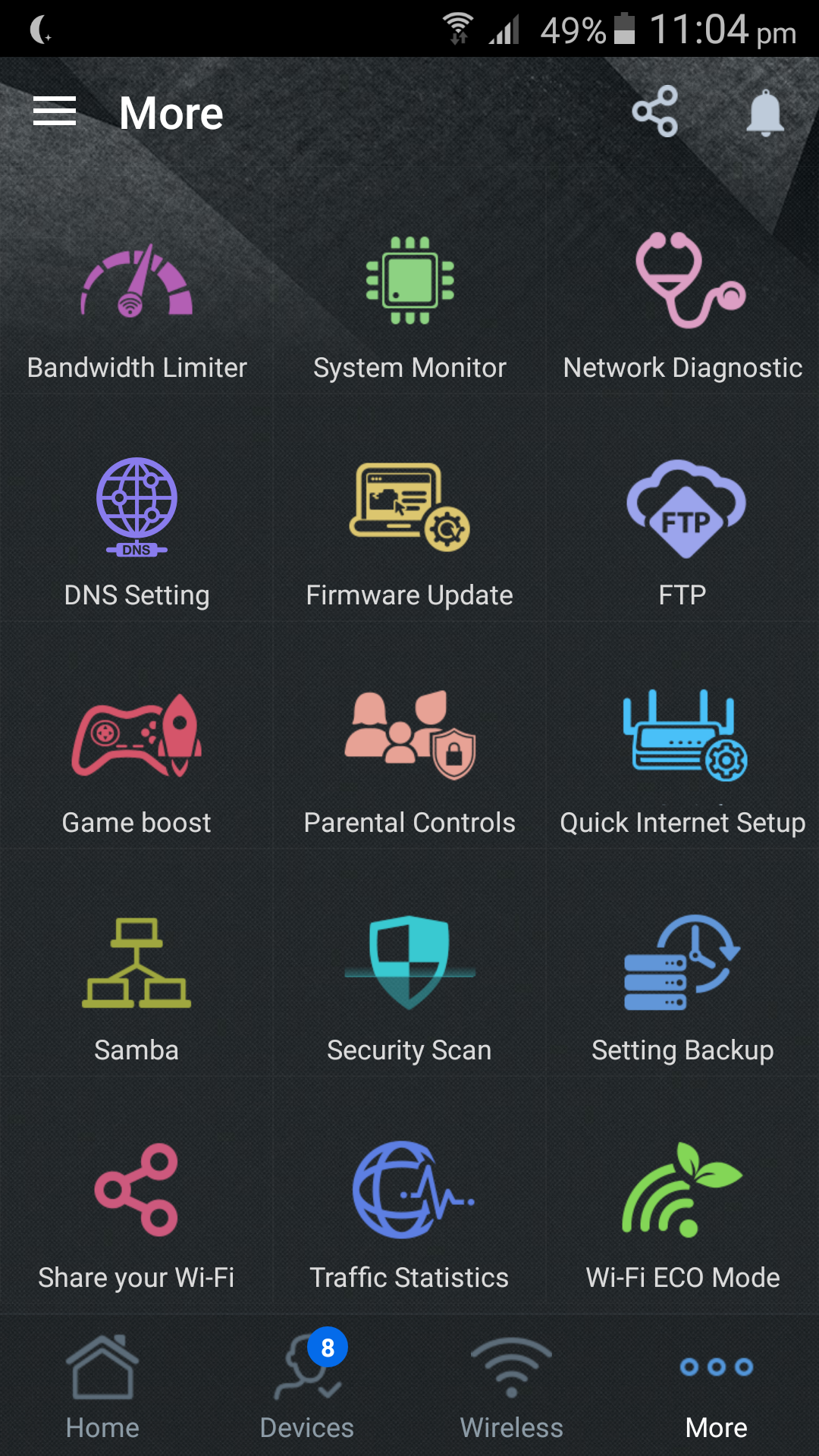

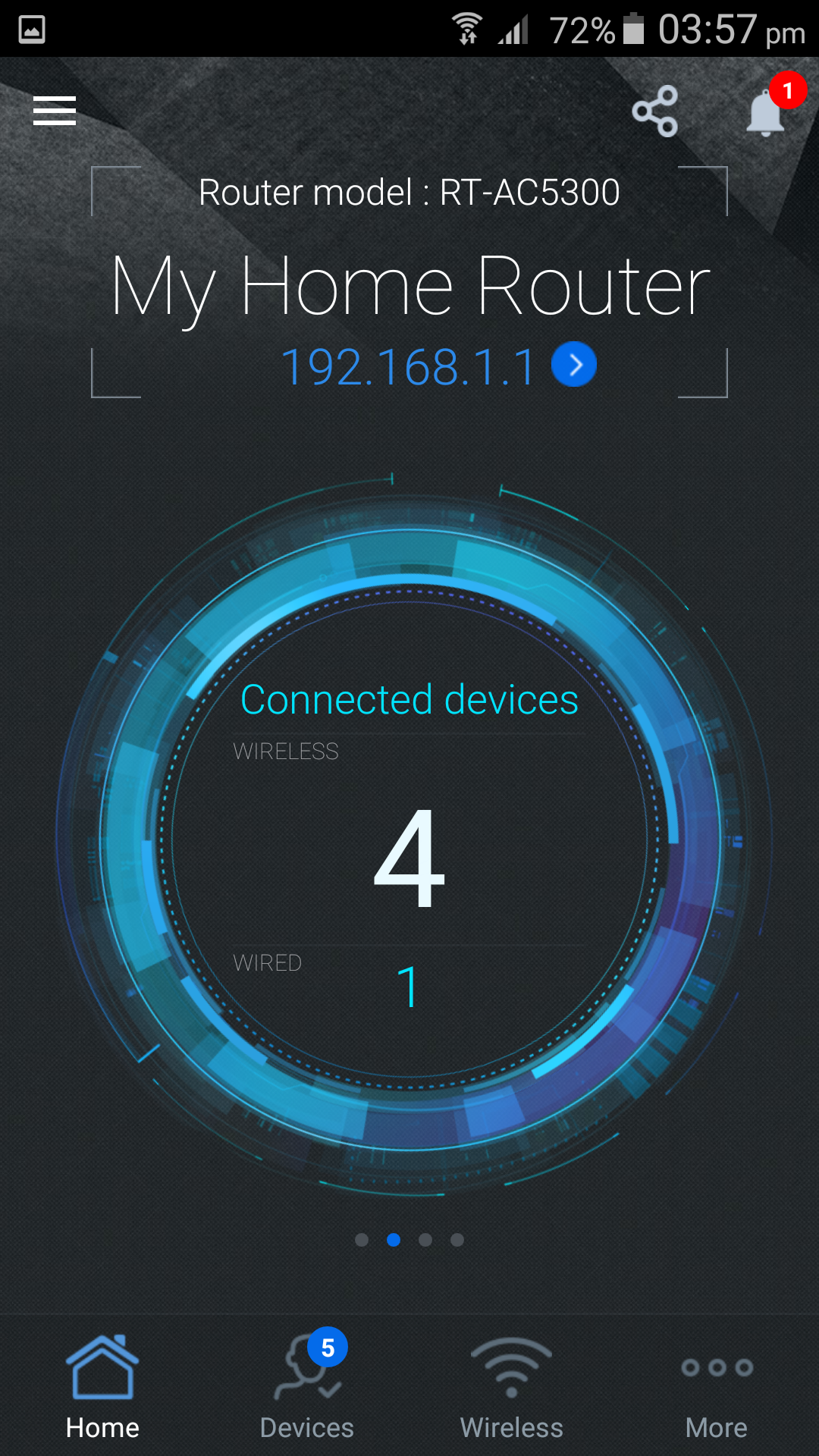

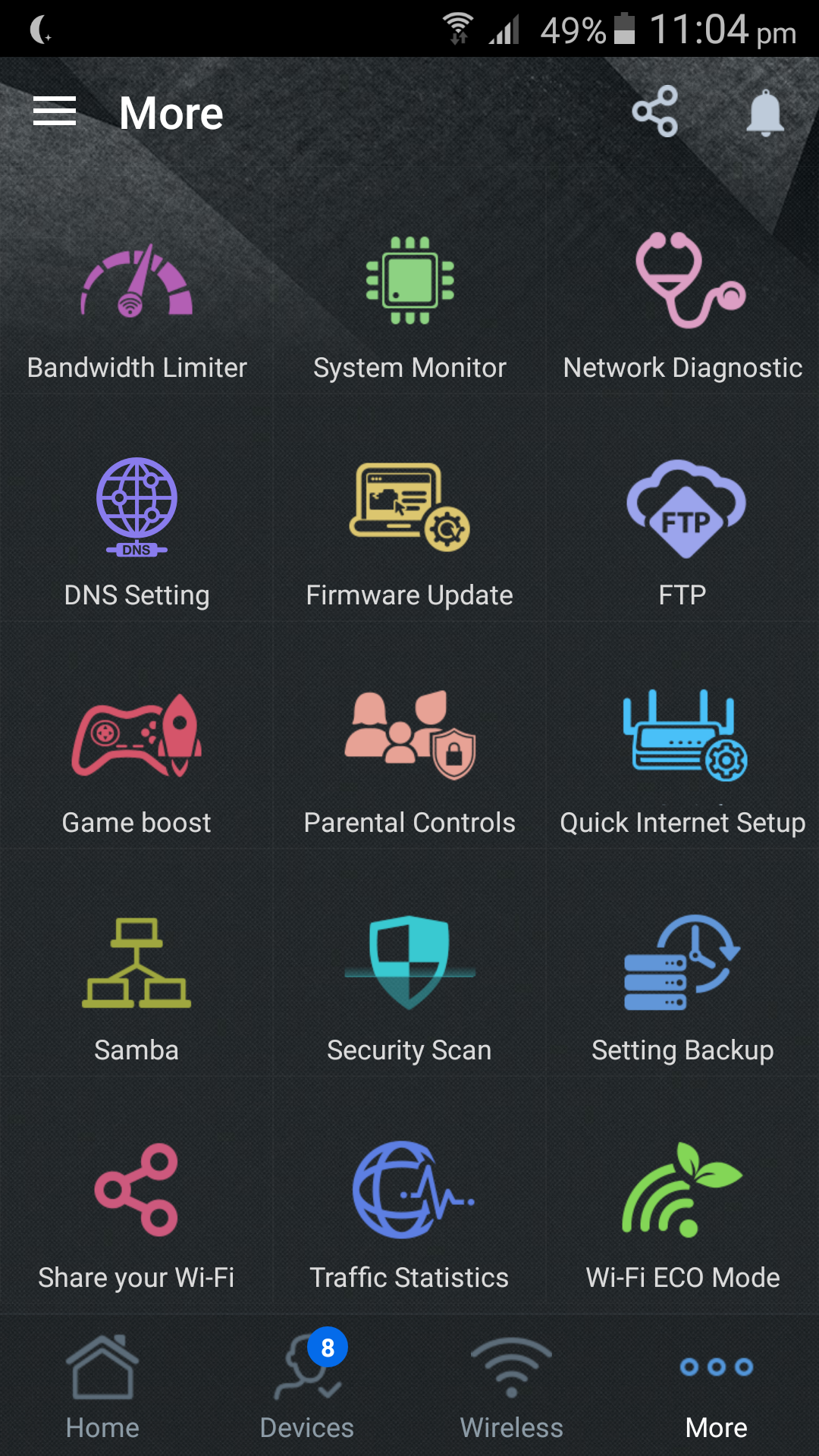

The recently announced Asus Router app works on this router as well. You are able to configure your router quickly via your mobile devices in an even simpler interface. You can monitor your connection and configure the QoS quickly. In addition, rogue clients can be blocked easily via the app. Your client will be notified the connection is blocked in a polite way. There are a lot of things can be done and you can configure it remotely as well! Something new from Asus.

Another feature worth mentioning is link aggregation. This feature allows your NAS which support dual LAN link aggregation to obtain an even better performance. I cannot test this feature as my NAS do not support dual LAN. It is a useful feature for power users.

Wireless Performance

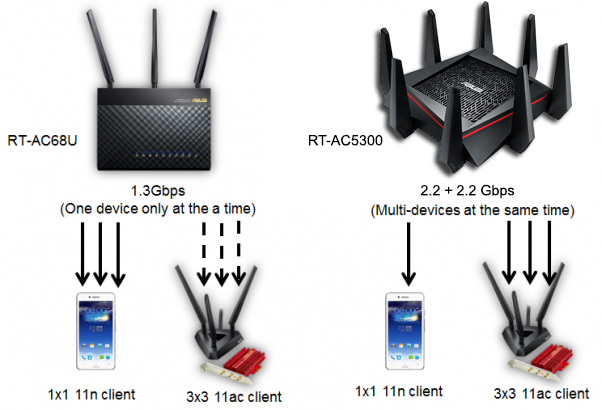

MU-MIMO explained

The RT-AC5300 support next generation 1024-QAM wireless and MU-MIMO. In layman terms, MU-MIMO allows the router to have more clients connected at the same time with a smaller penalty to the performance. The router is able to achieve speed up to 2167Mbps on a single 5Ghz band. Thus, with the tri-band configuration, the router support a maximum throughput of 5334Mbps (2167+2167+1000). Speaking of tri-band, the tri-band Smart Connect from the RT-AC3200 is there. The implementation is similar to the RT-AC3200. It is still very complicated and I recommend users should leave it as it is.

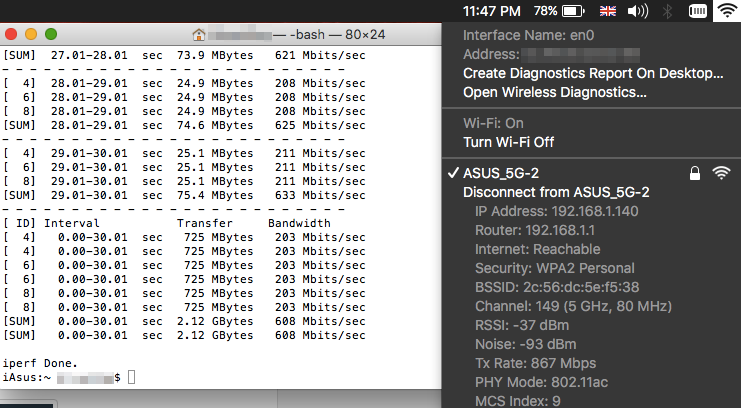

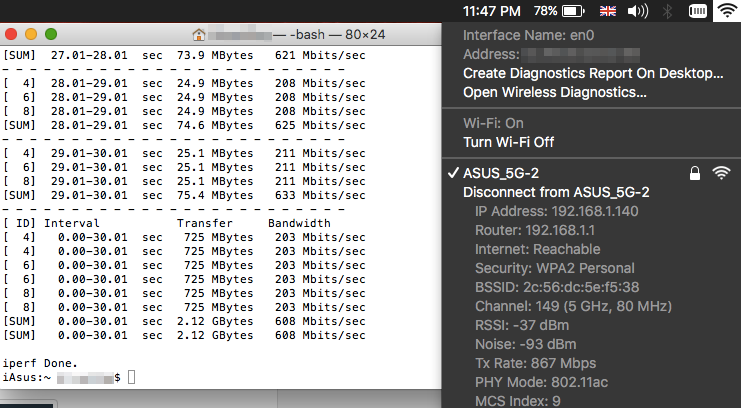

Asus RT-AC5300 wifi benchmark

I am using my Macbook Air as the test hardware. My Macbook Air supports Wireless AC up to 867Mbps on the 5Ghz band. On a 5m line of sight test, I am able to achieve a really good 608Mbit/s. It is by far the fastest speed I ever achieved on this test configuration. However, do note that my laptop is the limiting factor here. Asus RT-AC5300 support way faster wireless and I should be able to obtain a higher speed with a better hardware.

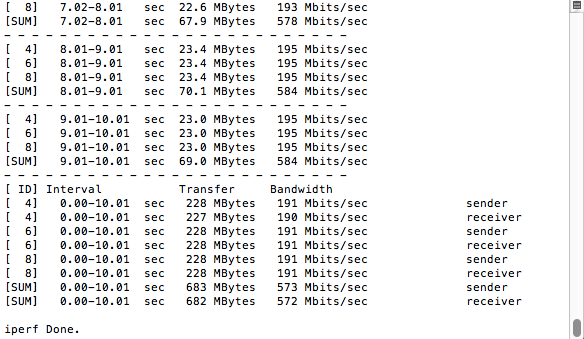

Asus RT-AC5300 wifi test

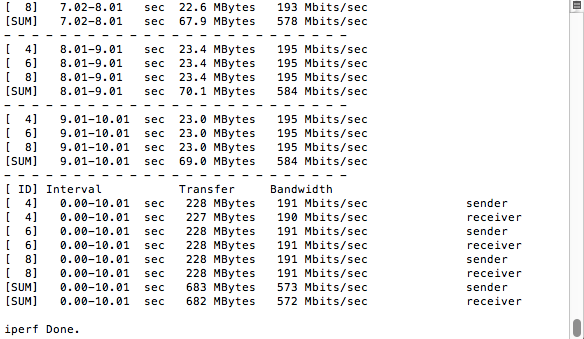

I performed the test one step further by connecting another device to the same wireless connection. The test is repeated and I see some small decrease in performance. This is expected when there are more devices on the wireless network. However, the decrease is small and the performance is still a very respectable 572Mbit/s.

Storage Performance

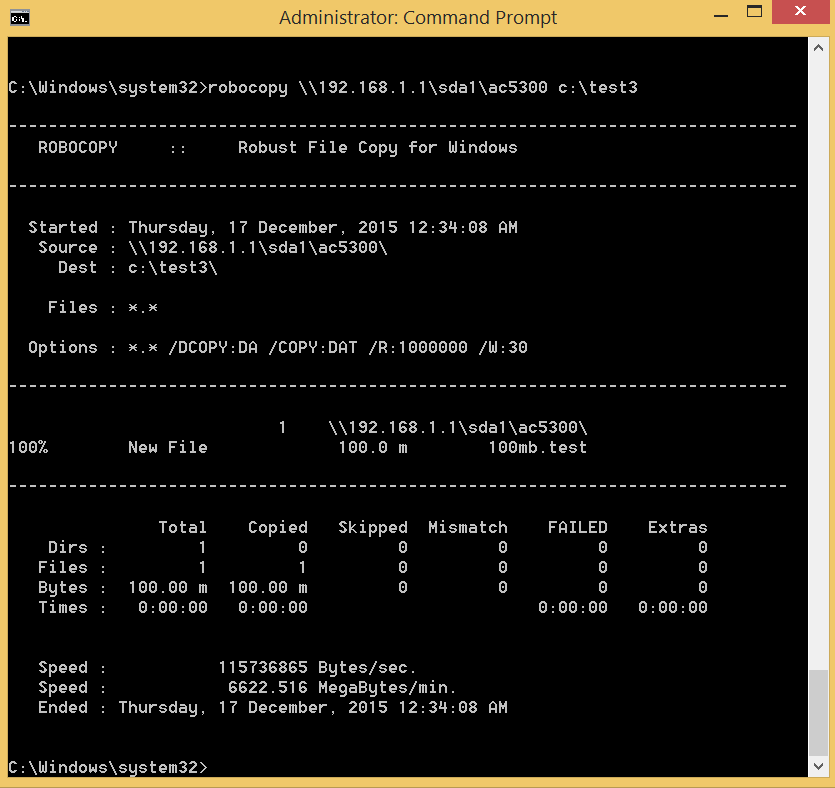

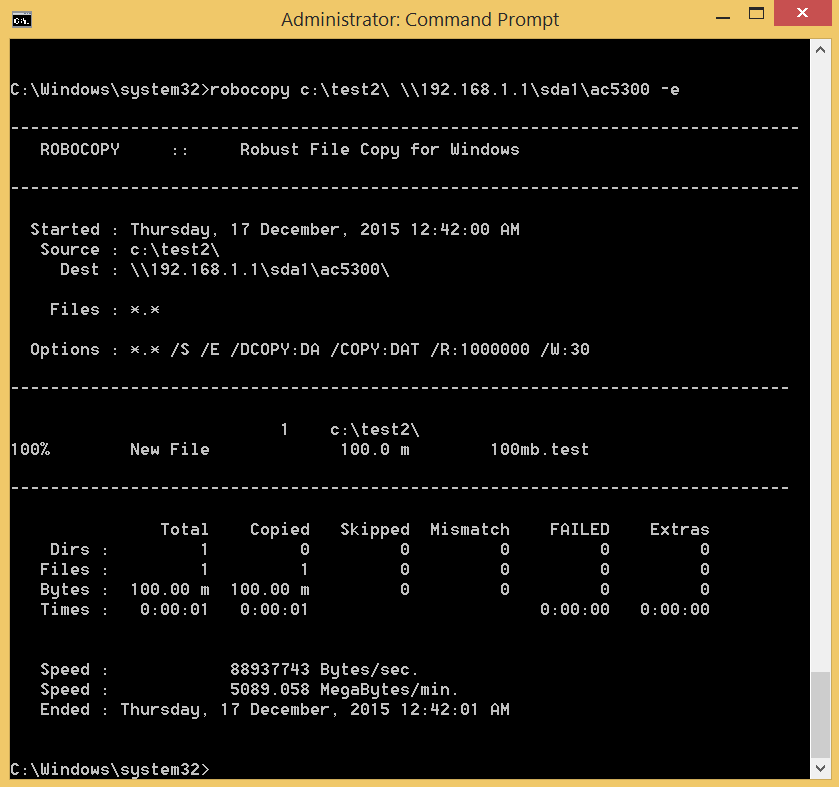

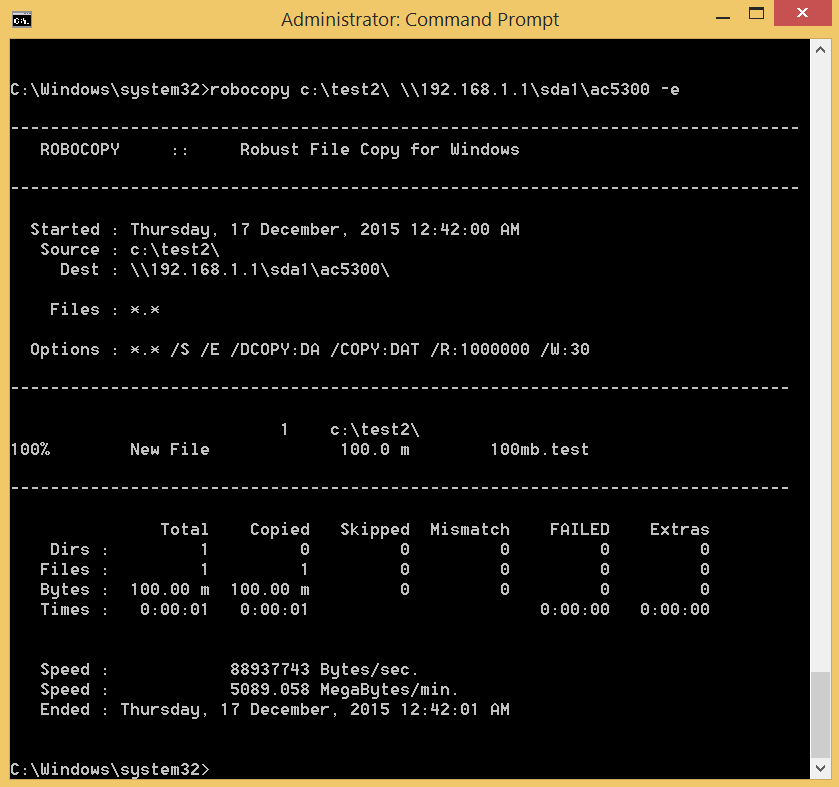

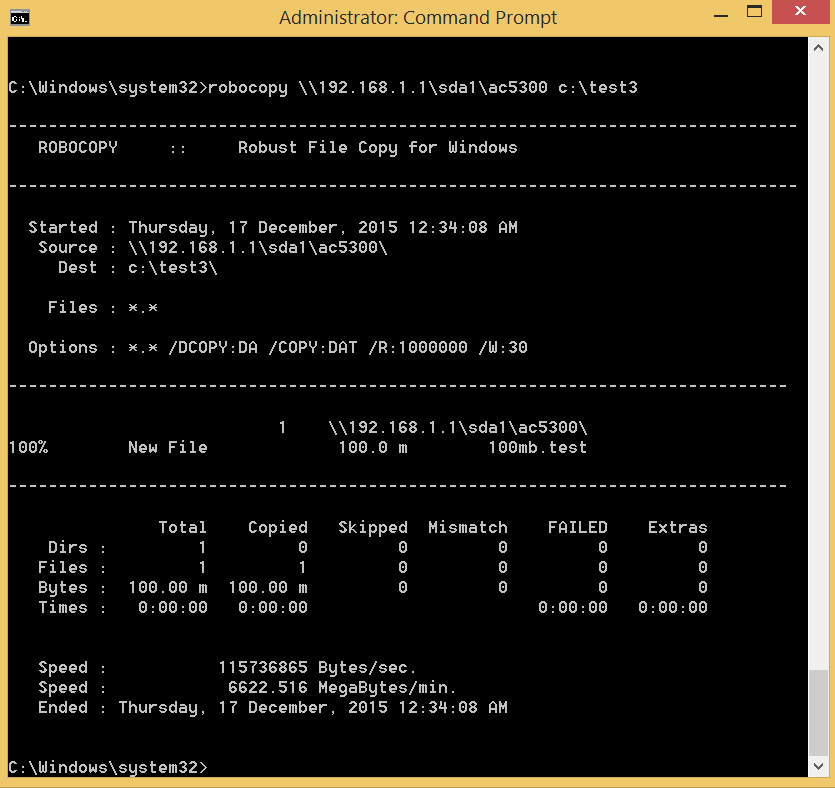

Asus claims this router more than 100MB/s USB read speed. I shared my USB 3.0 External harddisk with Samba and able to achieve quite a decent 110MB/s read and 84MB/s write on a Robocopy test. My harddisk is formatted with NTFS, the performance is similar even when formatted to ext3. To achieve the best performance, you should disable “Reducing USB 3.0 interference” under professional wireless configuration in ASUSWRT. This is due to USB 3.0 is able to interfere with wireless 2.4Ghz. Source

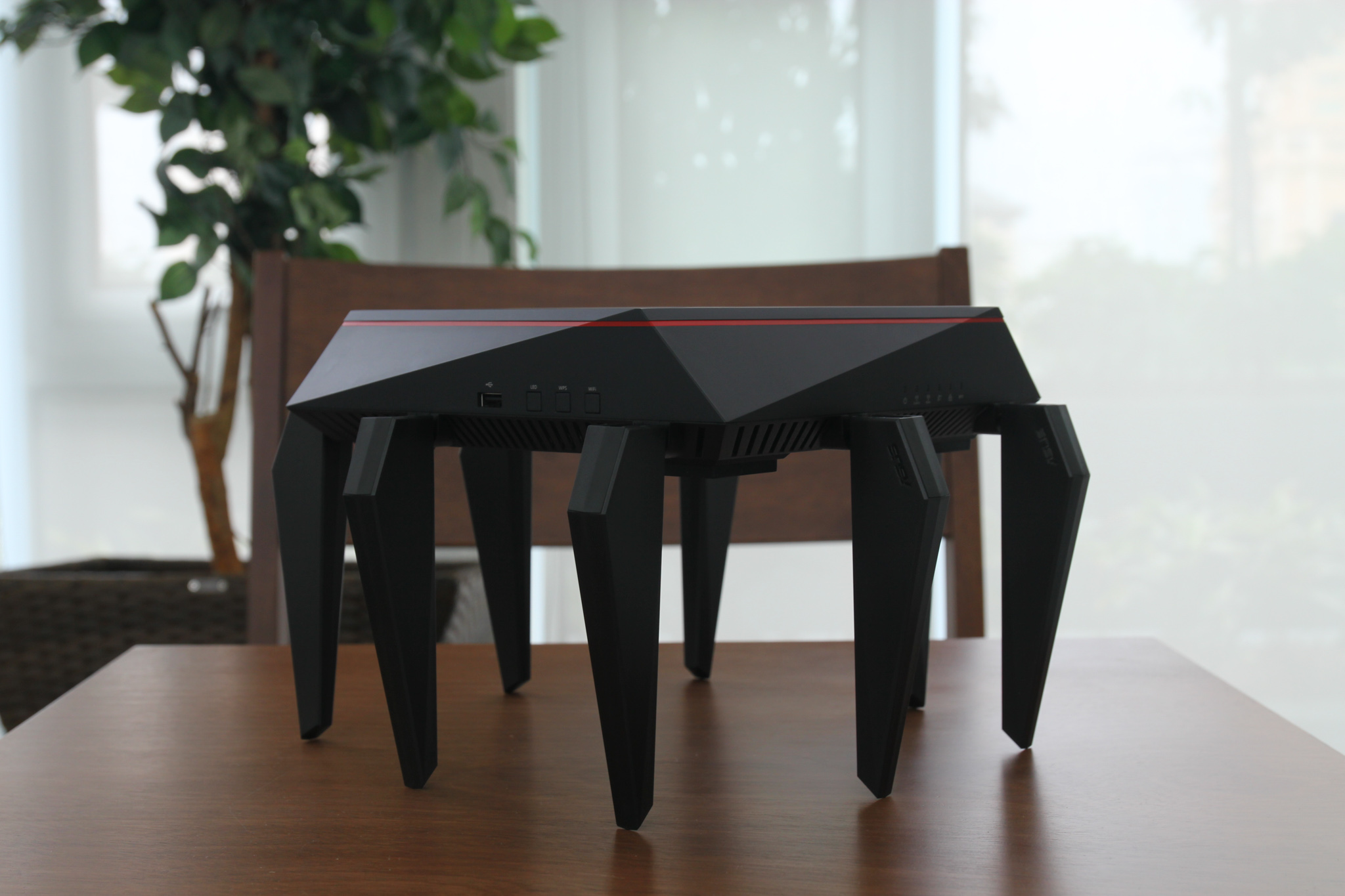

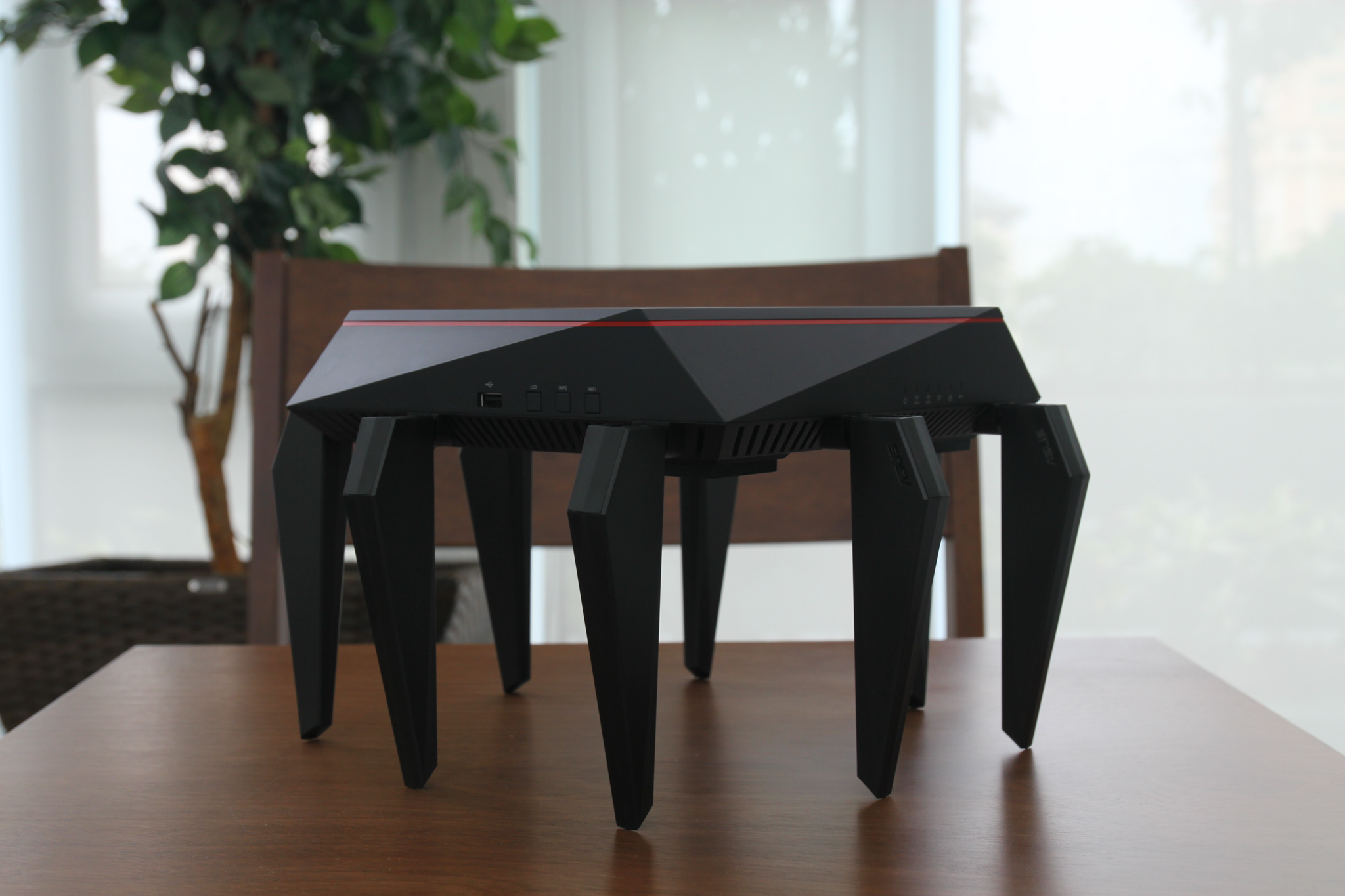

Asus RT-AC5300 Spider
It looks like a spider when folder this way!

Asus RT-AC5300 offers ridiculously fast wireless. I am particularly impressed by the range this router offers. It is better than most consumer routers I tried. It is a router not only for gamers, it is for those looking for absolute performance. The RT-AC5300 is close to perfection with improvements in performance on all aspects. In addition, the added features on this router are really useful. The gaming related optimizations do work and I certainly look forward to test WTFast when it is out of beta

However,  there is no consumer hardware able to utilize the wireless ability of the RT-AC5300 currently. Most wireless devices on the market only support up to 867Mbps currently. You may not be able to make full use of the offered ability now, but it is definitely a future proof device. The future of wireless technology is bright and I certainly look forward to more devices capable of faster wireless.
